How to Perform Partition or Volume Clone Easily

AOMEI Post By AOMEI Updated December 28, 2023

AOMEI Backupper provides the ability to clone a single partition rather than the whole disk. For example, the (C:) partition could be cloned to (D:) on the same drive, or the (E:) partition could be cloned to another disk.

This feature is useful if you would like to just clone one partition instead of the whole disk to another path.

Partition cloning has various practical applications in different scenarios. Here are some common use cases for partition cloning:

Hard Drive Upgrade: When you want to upgrade an old hard drive to a larger capacity or faster drive, partition cloning is a convenient method. You can clone all the data and partition structure from the old drive to the new one, eliminating the need for reinstalling the operating system and applications.

Data Migration: Partition cloning is a fast and efficient way to transfer data from one hard drive or partition to another. This is useful for computer replacement, data backup, or transferring data between different systems.

Experimentation and Testing: In software development and system administration, partition cloning can be used to create identical test environments. You can set up a baseline system, clone it into multiple test environments, and perform various experiments, testing, and debugging.

Create Partition Clone in Windows 10 step by step

Prerequisites for Partition Clone:

Firstly, connect the destination drive, HDD or SSD, to your current Windows 10 computer. Please make sure the selected drive is large enough to contain the system partitions. If it’s a laptop, you still need an external disk enclosure or USB-to-SATA cable.

Then, download this software and install it on your computer. It applies to Windows 11, 10, 8, 7, XP, Vista. For server users, try AOMEI Backupper Server.

Detailed steps about how to clone the partition

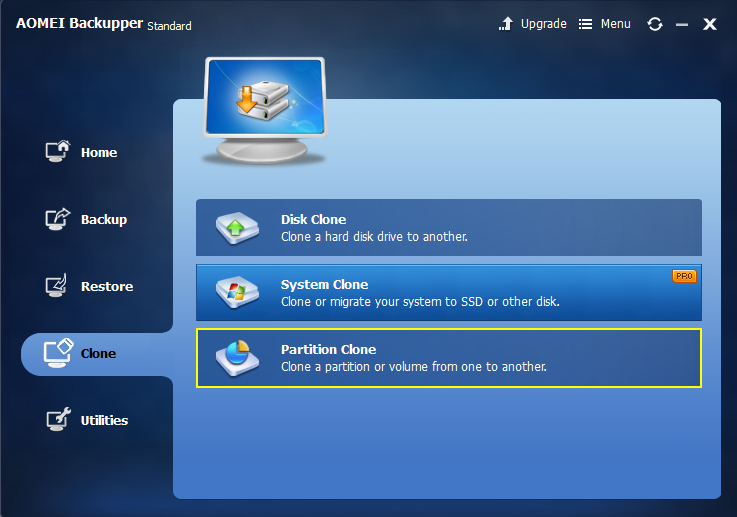

1. In the left tab page, select the Clone option, and then select Partition Clone.

Partition Clone

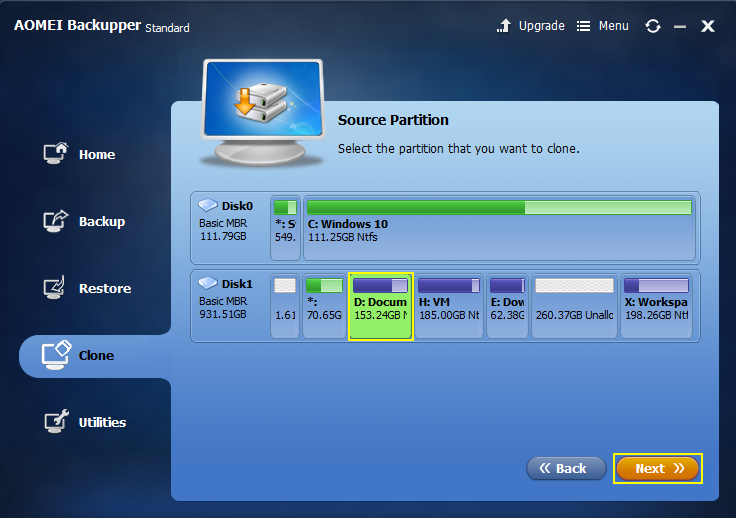

2. Select the source partition or volume you want to clone and click Next.

Select Source Partition

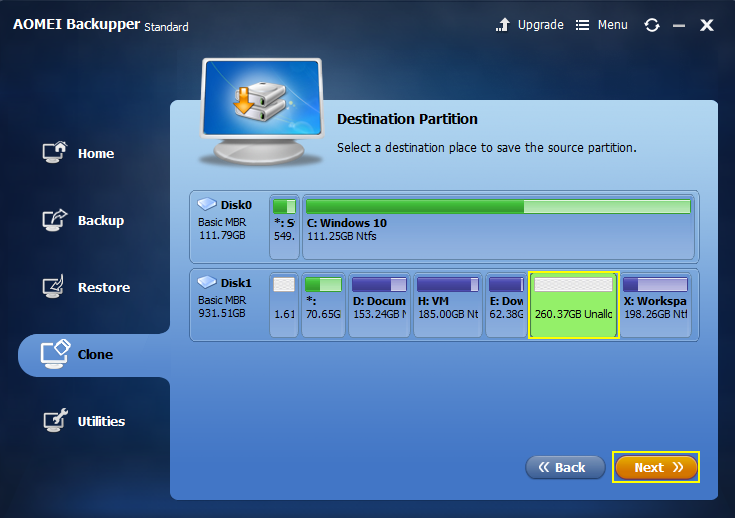

3. Select an appropriate unallocated space or an existing partition on the desired disk as the destination partition, and click Next.

Select Destination Partition

Tips: The destination partition or volume will be formatted and all existing data will be overwritten! Backup important files beforehand.

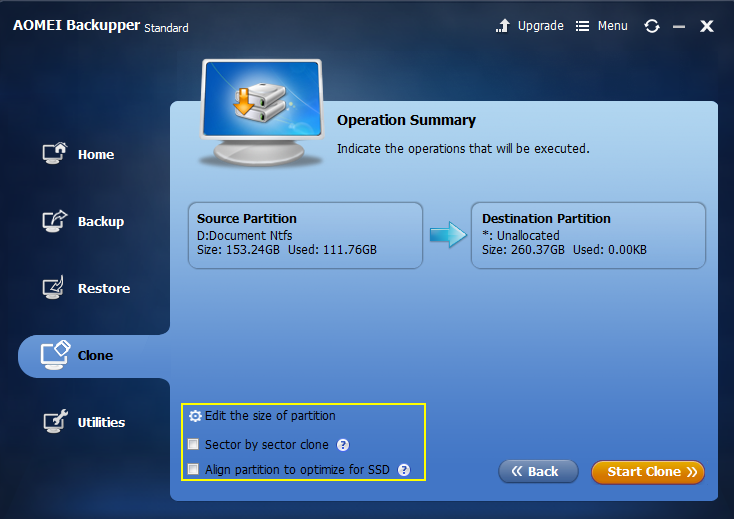

4. Preview the information detailing your source and destination selections. On the wizard page, set desired advanced settings as follows:

  • Edit Partition: Assign a drive letter and set the partition type as either primary or logical. The graphical Partition Bar can be dragged and moved to change the size or location of the partition. This feature is available in higher editions.

Partition Clone Edit Partition

  • Sector by sector clone: Copy all sectors of the source partition to the destination partition, whether in use or not. The destination drive/partition size must be equal to or larger than the source partition.
  • SSD Alignment: If the destination disk is an SSD, then it is recommended this option is selected to optimize SSD performance.

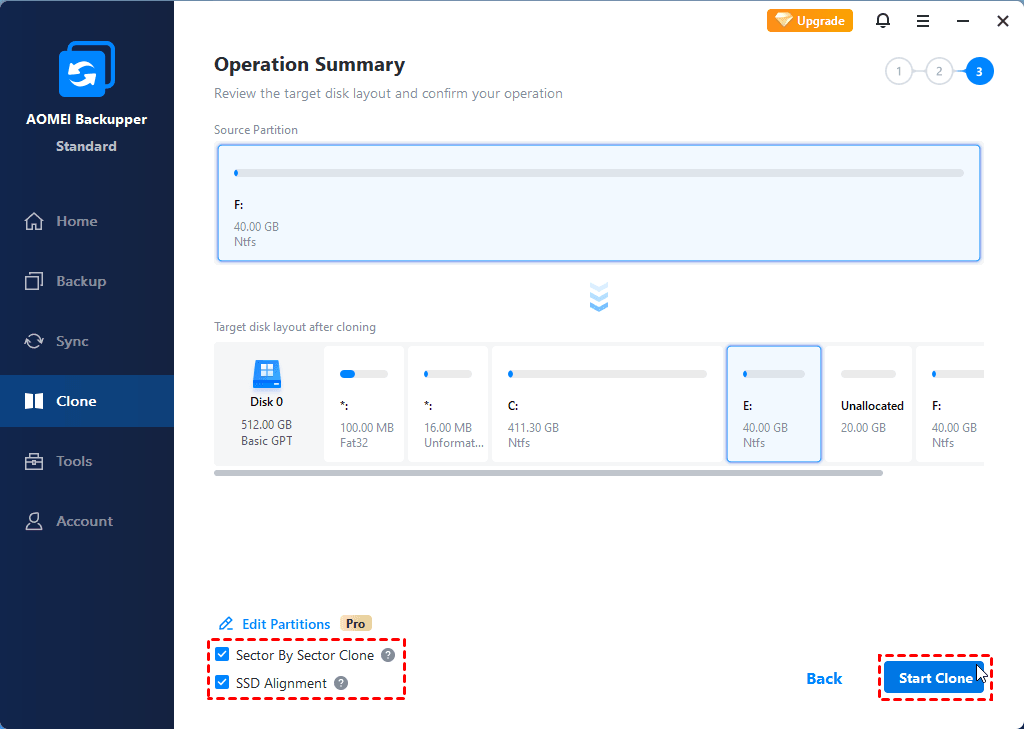

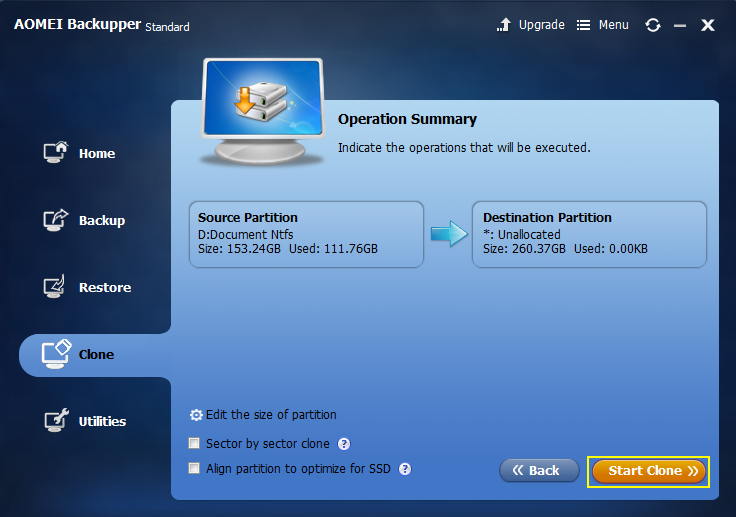

5. Finally, click Start Clone. Wait for the process to complete and then click Finish. A partition clone can take several hours depending on the size of the source partition.

Start Clone

For more detail, see: How to Do Partition/Volume Clone.

Notes:
  • A partition clone might take several hours depending on the size of the source partitions.

  • The source partition cannot be selected as a destination partition.

  • Any important data contained on the destination partition must be backed up first before the cloning operation begins, or the data will be lost.

  • If the destination partition is locked by other programs and/or applications, then Backupper will request the computer to restart to execute the partition clone operation in "Restart Mode".

  • For encrypted partitions or non-NTFS/FAT32 partitions, Backupper will use sector by sector clone mode by default.

  • Partition Clone only can clone dynamic volume from a dynamic disk to a basic disk.

  • Besides Partition Clone, you can also use it to clone hard drive to larger drive, migrate Windows 10  to M.2 SSD, clone hard drive to SSD, clone HDD to SSD via USB cable, clone Windows 10 to NVMe SSD, etc.

Conclusion

Partition cloning holds significant importance in data management, system maintenance, and emergency recovery. It provides a convenient, fast, and reliable method for data backup, system migration, and experimentation, enhancing our capabilities for data protection and system management.

FAQs:

Q: Why the cloned drive becomes "RAW" after disk clone?

A: Please verify if your source drive is BitLocker encrypted. In this case, you can just try disk clone again and check if the destination drive becomes normal. Or, you can decrypt BitLocker encryption and then retry disk clone.

If the problem still persists, please contact our AOMEI Support Team and attach the log folder under the installation directory of the software so that we can further analyze the problem and help you find solutions.
