Restore Hyper-V Virtual Machine from Windows Server Backup

You may have created a Hyper-V virtual machine backup via the built-in feature Windows Server Backup, but do you know how to restore Hyper-V virtual machine from Windows Server Backup? This is what I will introduce in this article, and an easier alternative is also included.

Crystal

By Crystal / Updated on October 23, 2023

Share this: instagram reddit

What is Windows Server Backup

If you are looking for a built-in way to back up Hyper-V virtual machines and restore them on Windows Server, then you definitely cannot miss Windows Server Backup.

Windows Server Backup (WSB) is a feature that provides a set of wizards and other tools for you to perform basic backup tasks for the server it is installed on. It enables you to backup and restore a full server (all volumes), selected volumes, the system state, specific files or folders, and Hyper-V virtual machines.

Starting from Windows Server 2012, WSB allows you to backup single Hyper-V virtual machines, instead of the full server. But if you have created a virtual machine backup, how to restore a Hyper-V virtual machine from Windows Server Backup? Next, I will introduce the detailed steps in this article.

Windows Server Backup

Evolution of Hyper-V Virtual Machine Backup on Windows Server Backup

In the previous version of Windows Server Backup, Hyper-V virtual machines are backed up and restored as part of full server or volume. So, you cannot backup or restore an individual virtual machine from a Hyper-V host. Luckily things changed in Windows Server 2012. Now it is possible to perform separate backup and restore for a single Hyper-V virtual machine. The WSB capabilities in backing up the Hyper-V infrastructure includes:

  • Full backup Hyper-V host with VMs included
  • Backup Hyper-V host without VMs
  • Backup individual VM from the host level
  • Backup from inside VM guest OS

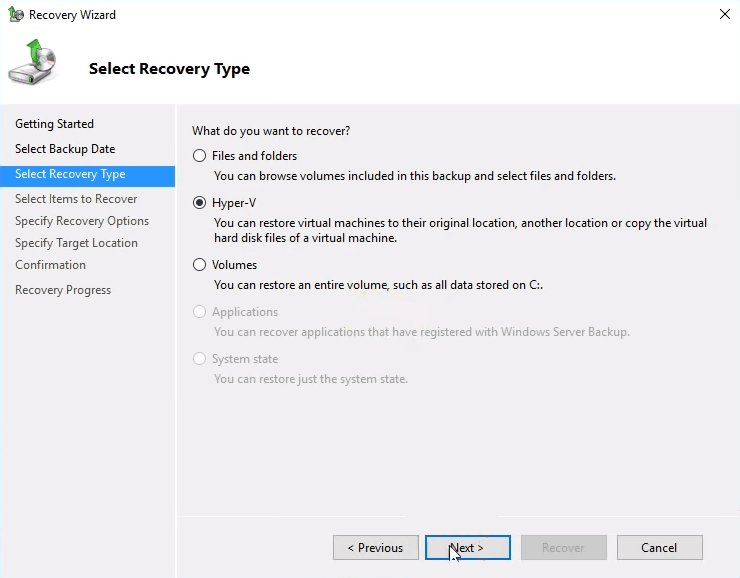

Windows Serve Backup recover type

How to Restore Hyper-V Virtual Machine from Windows Server Backup

In this section, I will introduce how to restore Hyper-V virtual machine from Windows Server Backup. This operation also applies to restore Hyper-V virtual machine from Windows Server Backup 2012r2. Before you start, please note that if the restore is performed while the VM is running, it will actually turn off and delete the VM before the VM is restored.

Here are the specific steps:

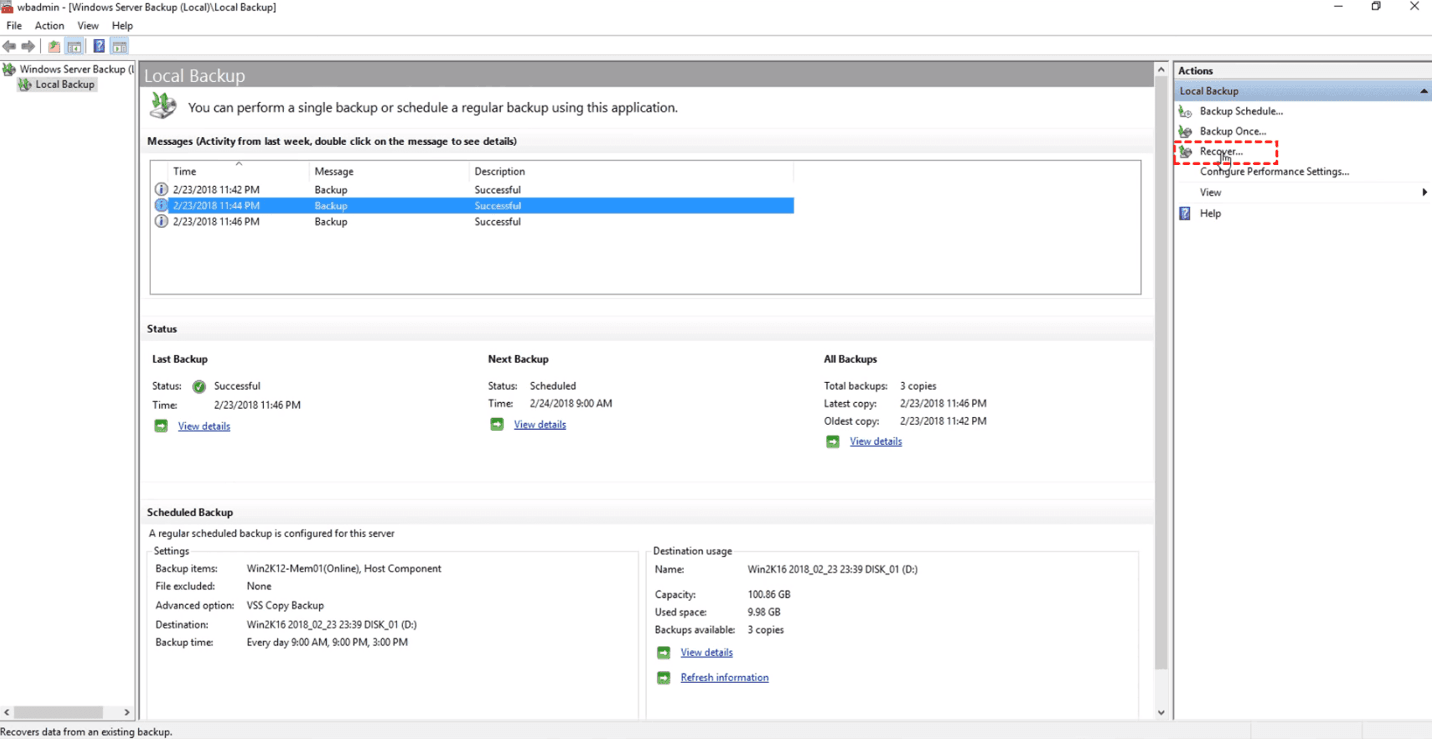

1. Launch Windows Server Backup and click Recover… from the right Actions inventory to open a wizard.

Recover from Windows Server Backup

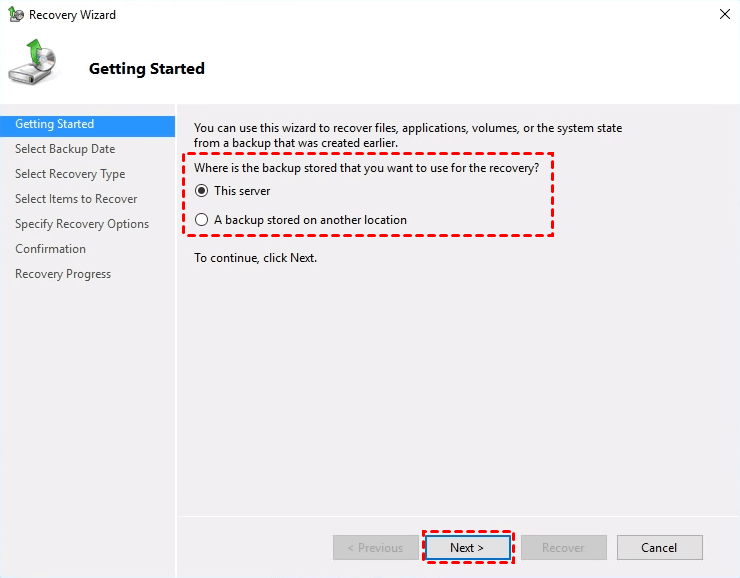

2. Select where is the backup stored that you want to use for recovery, and click Next to continue.

Recovery wizard

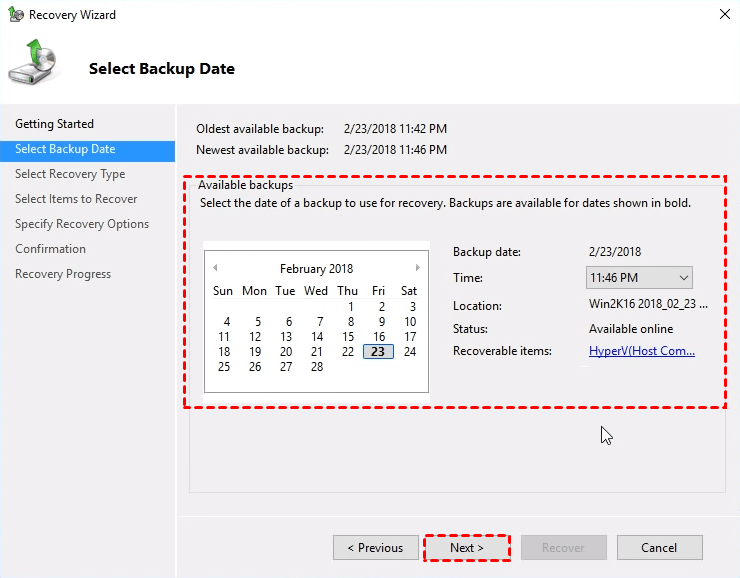

3.  Select the date and time of a backup to use for recovery, then click Next.

Select backup date

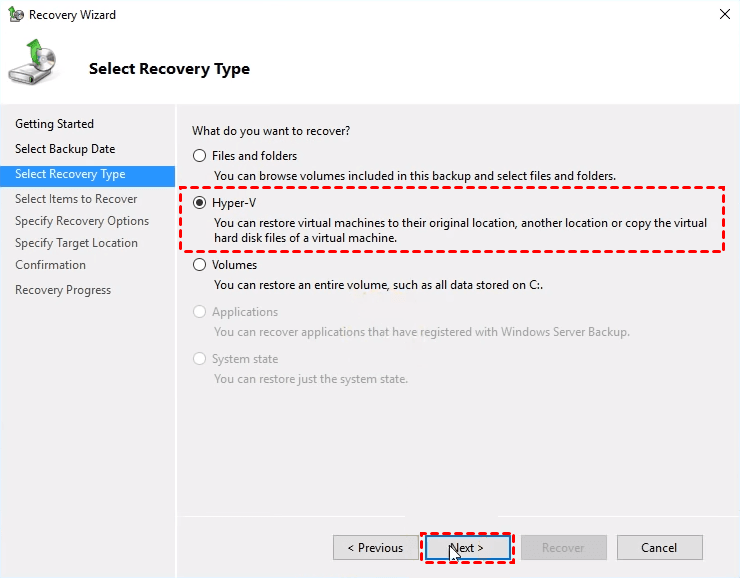

4. Select Hyper-V option as what do you want to recover.

Select recovery type

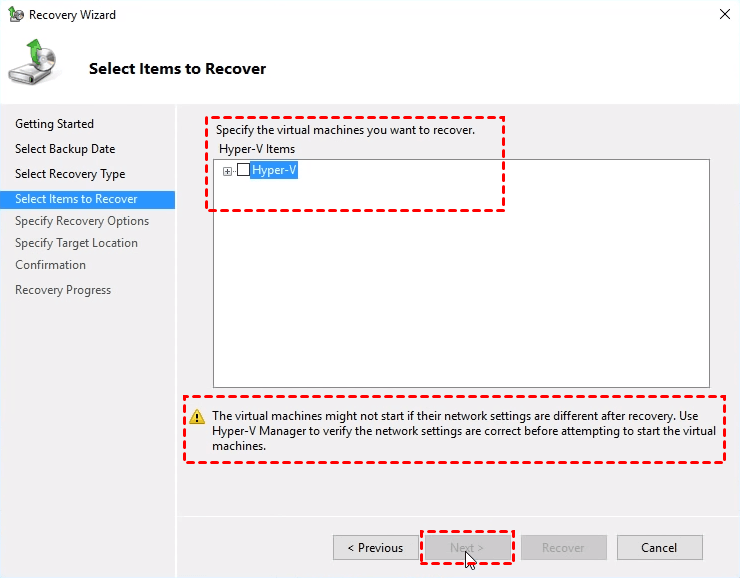

5. Specify the Hyper-V virtual machine you want to recover.

Select items to recover

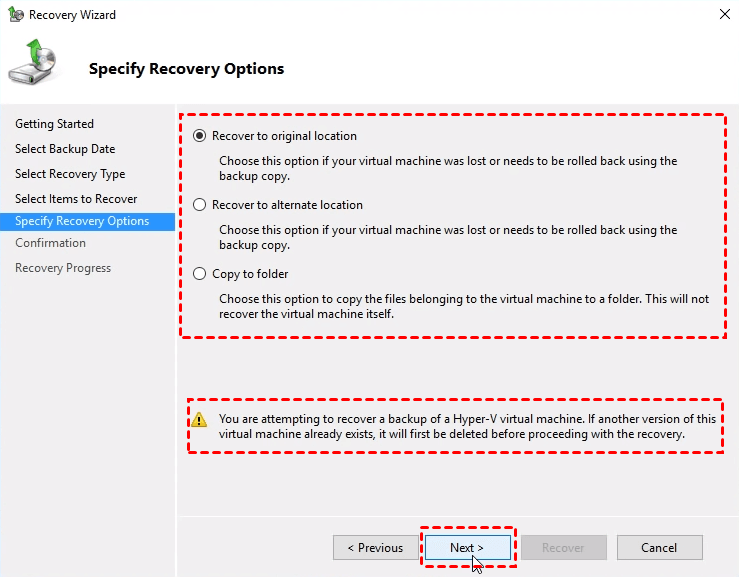

6. Specify recovery options:

  • Recover to original location: Choose this option if your virtual machine was lost or needs to be rolled back using the backup copy.
  • Recover to alternative location: Choose this option if you want to restore the virtual machine to a different location.
  • Copy to folder: Choose this option to copy the files belonging to the virtual machine to a folder. This will not recover the virtual machine itself.

Note: If another version of this virtual machine already exists, it will first be deleted before proceeding with the recovery.

Then click Next.

Specify recovery options

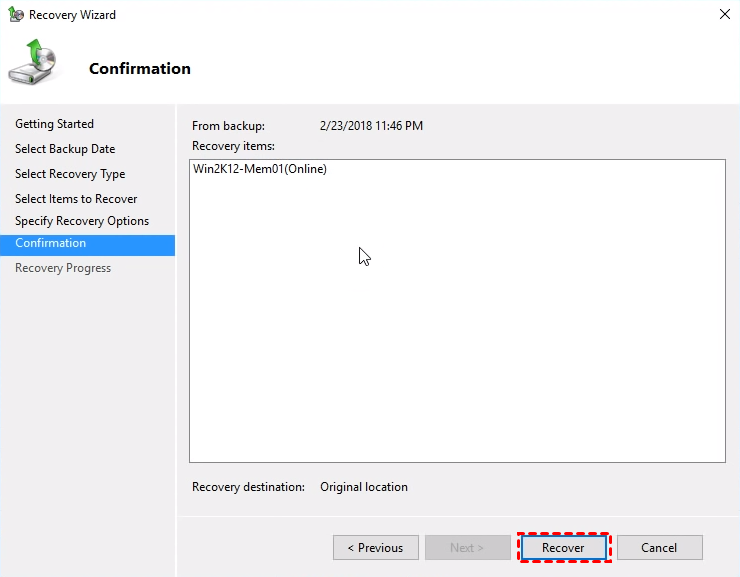

7. Confirm the backup and the Hyper-V virtual machine you are going to restore, and then click Recover to start.

Confirmation

Wait for the recovery process. Click Close the recovery operation will continue to run in the background.

Easier Ways to Backup and Restore Hyper-V Virtual Machines (Free)

Although there is a built-in backup method, Windows Server Backup, many IT professionals still choose to use more stable third-party software to back up Hyper-V virtual machines. This is because Windows Server Backup is only suitable for small sizes and numbers of virtual machines, and is not stable when backing up large numbers of VMs, and may cause some errors such like Hyper-V VM stuck at restoring.

Furthermore, third-party software tends to offer simpler steps compared to restoring a virtual machine from a Windows Server backup.

Way 1. Centrally Backup and Restore Hyper-V VMs via AOMEI Cyber Backup

AOMEI Cyber Backup, a free Hyper-V backup software that provides basic backup and recovery capabilities for both VMware and Hyper-V environments. It not only supports centralized backup of virtual machines, but also SQL databases and physical servers.

In addition, it has the following benefits:

Easy Image-level VM Backup: Create a complete image-level VMs backup task for quick disaster recovery, only several easy steps.
Centralized Management: Provides a centralized management console, making it easy to oversee and control your backup tasks from a single location. This simplifies the backup and recovery process, especially for businesses with multiple systems to manage.
Schedule and Automation: You can schedule automated backups at your convenience, ensuring that your data is regularly and reliably protected without manual intervention

AOMEI Cyber Backup supports Hyper-V in Windows 8/8.1/10/11, Windows Server/Microsoft Hyper-V Server 2012 R2 and later versions. It also enables you to centrally manage VMs on both Hyper-V and VMware ESXi.

Backup Hyper-V VM with AOMEI Cyber Backup

You can click the following button to download the free VM backup software for VMware ESXi and Hyper-V:

Download FreewareVMware ESXi & Hyper-V
Secure Download

💡 Steps to restore entire Hyper-V virtual machine:

Note: Before you start backup and restore, you need to bind your Hyper-V host for authorization. Once bound to the host, you don't need to repeat this step later.

1. Access AOMEI Cyber Backup web client, and the accomplished Hyper-V backup task will be listed in Backup Task. Select which backup you want to restore, and click ... > Restore to open the wizard. Or you can navigate to Backup Management > History Versions. Specify a VM and select a restore point from the left list.

Restore from backup task

2. Confirm the source host and VM, choose to Restore to original location. Then you can click Start Restore. It also enables you to restore your VM to different hardware or virtual environments, increasing disaster recovery flexibility once you upgrade to Premium Edition to enjoy.

Restore to original location

Way 2. Easily Restore Individual Virtual Machines with AOMEI Backupper

AOMEI Backupper's user-friendly interface ensures that both novices and IT professionals can easily navigate and set up their backup and recovery processes. You just need to install AOMEI Backupper on your Hyper-V virtual machine, and start to back up or restore your system, partition, disk or file easily.

Download Freeware Win 11/10/8.1/8/7/XP
Secure Download

1. In the left tab, select Restore and then click Select Task or Select Image File. Here I take "Select Task" as an example.

Select Task

2. Select a backup image and click the Next button to recover your system to the point in time the backup was taken.

Select Backup Image

3. Choose to restore the entire image or part and click Next.

Select Entire Backup or Partition

4. In the "Operation Summary" page, preview the operation that will be executed. Then, click Start Restore. Wait for the process to complete, and then click Finish.

Preview Restore

✍ Tips: If the system image is taken from another computer, you should tick "Universal Restore" (paid function) to ensure the system is bootable after recovery.
For further details with screenshots, see: How to Do System Restore.

Summary

Windows Server Backup is a built-in feature that enables Windows Server users to backup and restore a full server, selected volumes, the system state, files or folders, and Hyper-V virtual machines. If you created Hyper-V backup in this way, you can refer to this this article to learn how to restore Hyper-V virtual machine from Windows Server Backup.

However, as Windows Server Backup only suitable for small amount of data, it is recommended you try a professional and stable software for Hyper-V restore deleted VM at image-level. In this regard, AOMEI Cyber Backup definitely worth a try.
