How to Perform System Restore in Windows Server 2016 | 3 Ways

How to do system restore in Windows Server 2016? Without restore point option like in Windows Client, you need to create a backup including system state using Windows Server Backup, or try easier alternatives.


By Delia Updated on December 14, 2023

Share this: instagram reddit

Does Server 2016 Include System Restore Points?

System Restore is a Windows feature designed to revert system files, settings and applications to an earlier state. To use it in Client OS like Windows 10, you can enable System Protection to create restore point . However, this function does not apply to Windows Server 2016, 2019, 2022 or 2012/2012 R2.

To perform Windows Server 2016 system restore, one common method is to create a backup including system state. But considering the limitations of Windows Server Backup and the cumbersome procedure, you could also try easier alternatives to backup and restore the operating system.

I’ll cover 3 methods below:

  • Way 1. Backup and restore system state with Windows Server Backup Go ▶
  • Way 2. Standalone tool to perform system restore in Windows Server 2016 Go ▶

  • Way 3. Centralized tool to run system restore in Windows Server 2016 Go ▶

Windows Server 2016 System Restore

Backup and Restore System State via Windows Server Backup

How does Windows Server 2016 backup and restore work? First you need to install the backup tool, the path is:

Server Manager >> Manage >> Add Roles and Features >> Role-based of feature-based installation >> Select a server from the server pool. Then you can follow the wizard to select Windows Server Backup and install it.

After that, click Tools in Server Manager and choose Windows Server Backup to continue.

Add Windows Server Backup

*If you can’t find this feature or fail to use it, please refer to Windows Server Backup service missing.

How to create a backup in Windows Server 2016

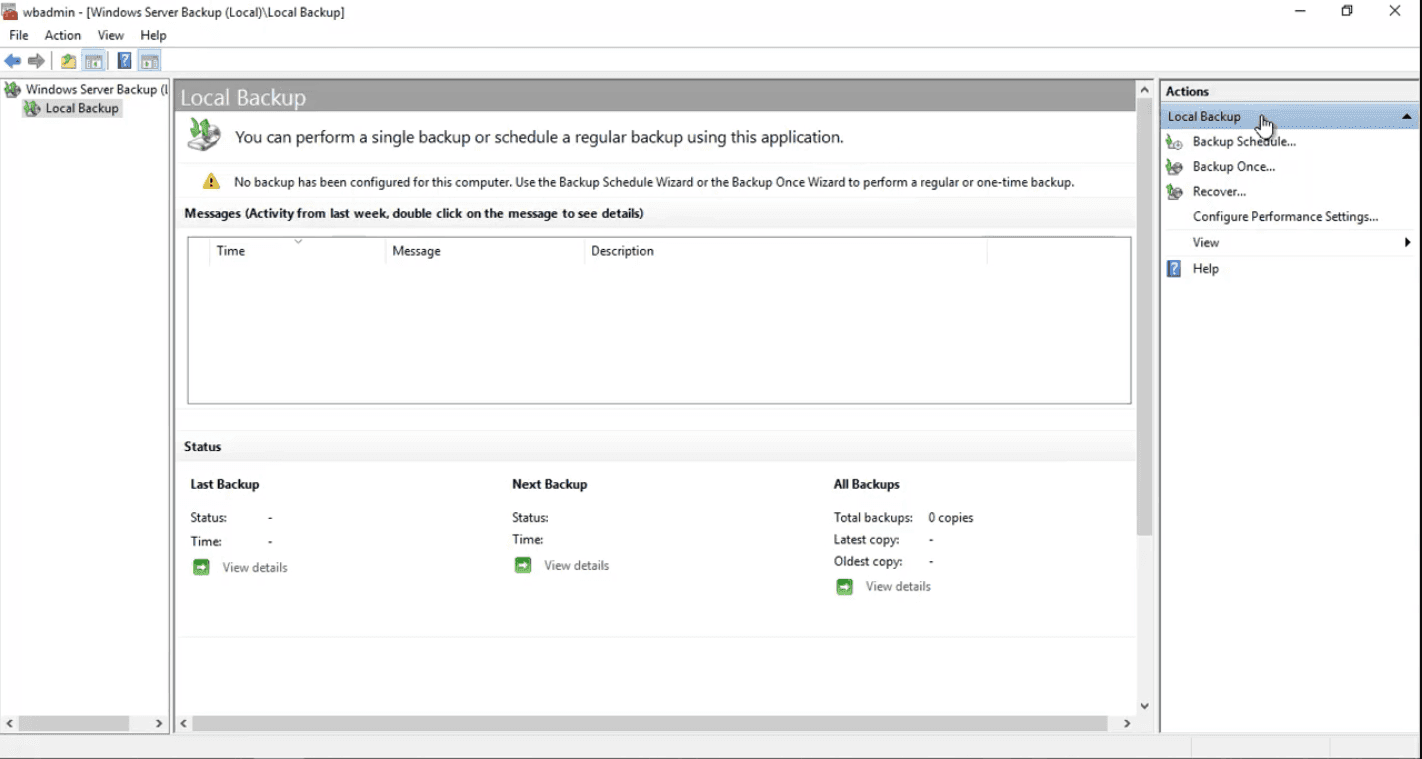

1. Click Local Backup to choose Backup Schedule or Backup Once according to your needs. Here I’ll choose the former to set up an automatic backup.

Local Backup

2. Choose backup configuration. Full server refers to all the data on the server, and Custom allows you to select volumes and files manually. I’ll choose Custom here to show you what could be included in this backup.

Select Backup Configuration

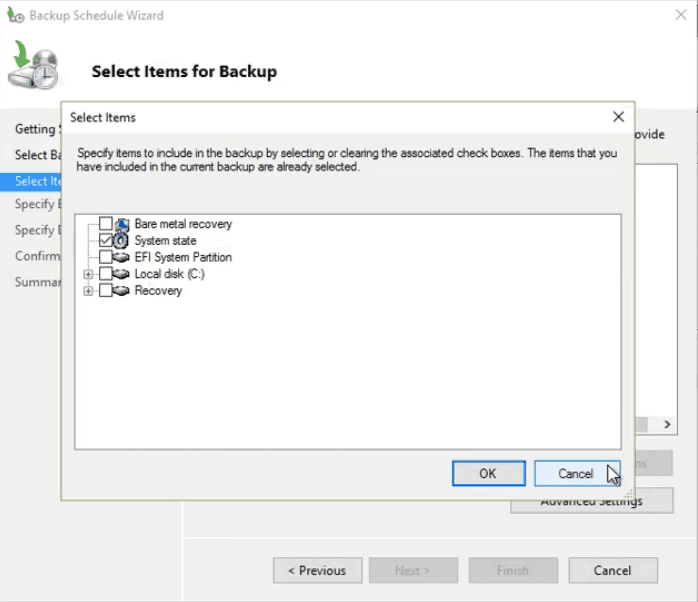

3. To perform system restore on Windows Server 2016, there are several options you could consider:

👉 System state - Backs up operating system files, allowing you to recover a machine when it’s still bootable. Optionally, you can tick System Reserved and C: drive to include all the data and files in system drives.

👉 Bare metal recovery - Backs up operating system files and all data except user data on critical volumes. It allows you recover everything on the machine when it won't start.

Make your own decision and lick OK to confirm. To learn what you can back up and recover, please read this guide.

Select Items

4. Then, set up a schedule to run the backup automatically. You can choose once a day or more than once a day. Click Next to proceed.

Learn how to fix Windows Server Backup schedule not running if the backup does not execute as scheduled.

Specify Backup Time

5. Now you can specify a destination type, like a hard disk, a volume or a shared network folder. Hard disk is the recommended one. Then select the destination disk and confirm it.

Select Destination Disk

6. Click Finish to start backup. Note the destination disk will be formatted after backup, so please use a blank disk or backup the data on it at first.

How to restore from a system state backup in Windows Server 2016

1. With a previously created system state backup, you can select the backup task, and choose Recover to get started.

2. Choose This server if it’s a local backup, then select the date of the backup that you want to use for system restore.

Get Started

3. Select what you want to recover from the backup. Choose System state here.

Recover System State

4. Then specify where you want to restore it to. Original location is the default selection.

Recover To Original Location

5. Confirm the operation and click Recover to proceed.


*In addition to performing Windows Server 2016 restore from backup, you can also reset it to set up the settings from scratch or fix existing problems. Learn how to make Windows Server 2016 reset to default.

How to perform bare metal recovery on Windows Server 2016

If your machine fails to start and you’ve created a bare metal backup before, you could perform a bare metal recovery to restore the operating system with all the data in critical volumes (except user data).

1. Insert the bootable media of Windows Server 2016 to boot it, click Repair your computer to enter recovery environment.

Repair Your Computer

2. Choose Troubleshoot > System Image Recovery to get started.

System Image Recovery

3. Your latest available system image will be auto detected, click Next to continue or choose Select a imageto specify the backup you want to restore from another location.

Use The Latest Available System Image

4. Keep the option Format and repartition disks ticked to matched the layout of the system image, and click Next.

Format Repartition Disks

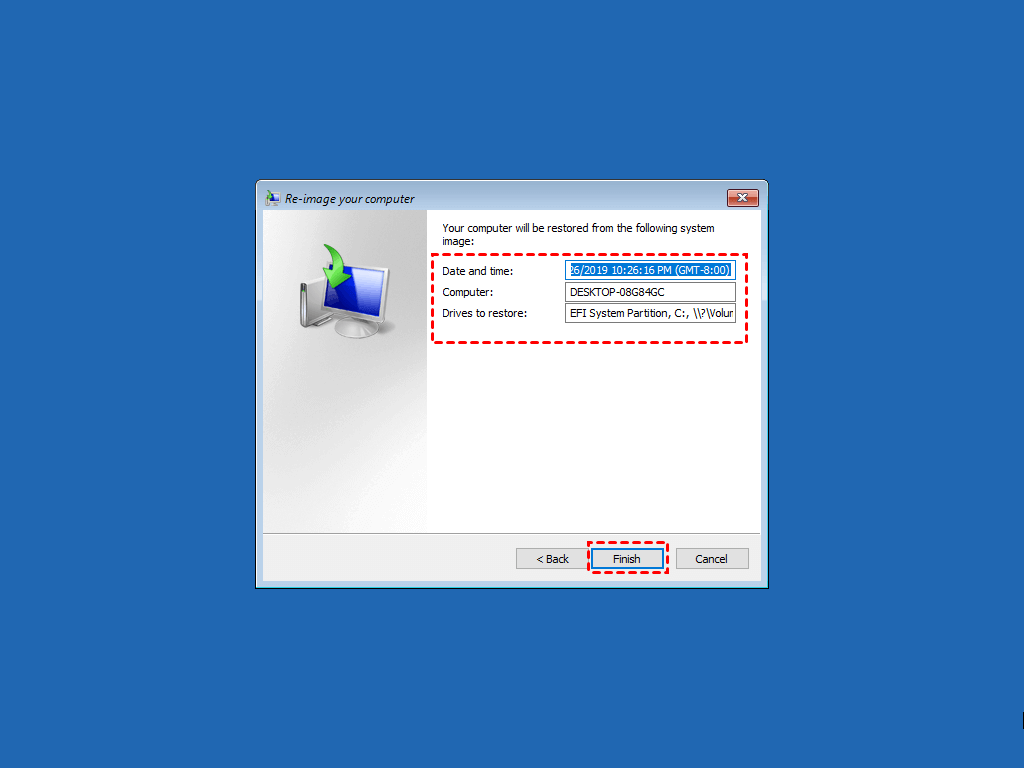

5. Confirm the information and click Finish to perform system image recovery on Window Server 2016.


Standalone Tool to Perform System Restore in Windows Server 2016

Windows Server Backup is a full-featured backup utility, but not a simple one. You’ll find the operation lengthy and also comes with some limitations. In this case, AOMEI Backupper Server could be an easier alternative to perform Windows Server 2016 system restore, and it also applies to newer versions, like 2019, 2022.


It works on a wide range of Windows OS, including Windows Server 2003, 2008, 2011, 2012, 2016, 2019, 2022 (including R2), Windows SBS 2003, 2008, 2011 and Windows 10, 8.1, 8, 7, Vista, XP.

It supports various storage devices, not only internal/external hard drive, but also NAS, network share, cloud service, etc.

In addition to system backup and restore, it also applies to file & folders, partitions and disks.

It enables you to create a recovery drive and restore system in WinPE to rescue a malfunctioning machine.

With the universal restore feature, you could easily restore system image to different hardware.

Download Free Trial Win PCs and Servers
Secure Download

How to backup Windows Server operating system with AOMEI Backupper

1. Launch the software. Navigate to Backup and click System Backup. Optionally, you could choose Disk Backup to backup everything on the machine including OS and all the drives on the disk.

System Backup

2. All the system files, settings, applications and personal data in system partitions will be automatically selected as the source, you just need to select a destination path.

Select Backup Destination

3. Before Start Backup, you can do further settings to optimize the backup

Backup Schedule: Create an automatic system backup. You can choose Daily/Weekly/Monthly/Event triggers/USB plug in.

Schedule Settings General

Backup Scheme: You can select backup method as full/incremental/differential, or enable automatic backup cleanup to auto delete old backups.

Enable Backup Scheme

Options: Manage compression level, image splitting, encryption, operation priority, email notification, etc.


*In case you want to perform Windows Server 2016 system restore when it won’t boot, please go to Tools > Create Bootable Media to create a Window Server recovery drive.

How to perform Windows Server system restore with AOMEI Backupper

If the machine is still bootable, you could launch the software normally to perform a system restore. Otherwise you need to insert the bootable media, and complete system recovery in WinPE.

If you mean to perform Windows Server bare metal recovery to different hardware, just use the bootable media to launch AOMEI Backupper in WinPE, and tick Universal Restore at the last step.

Whichever case you are in, the operation to restore Windows Server 2016 system are roughly the same:

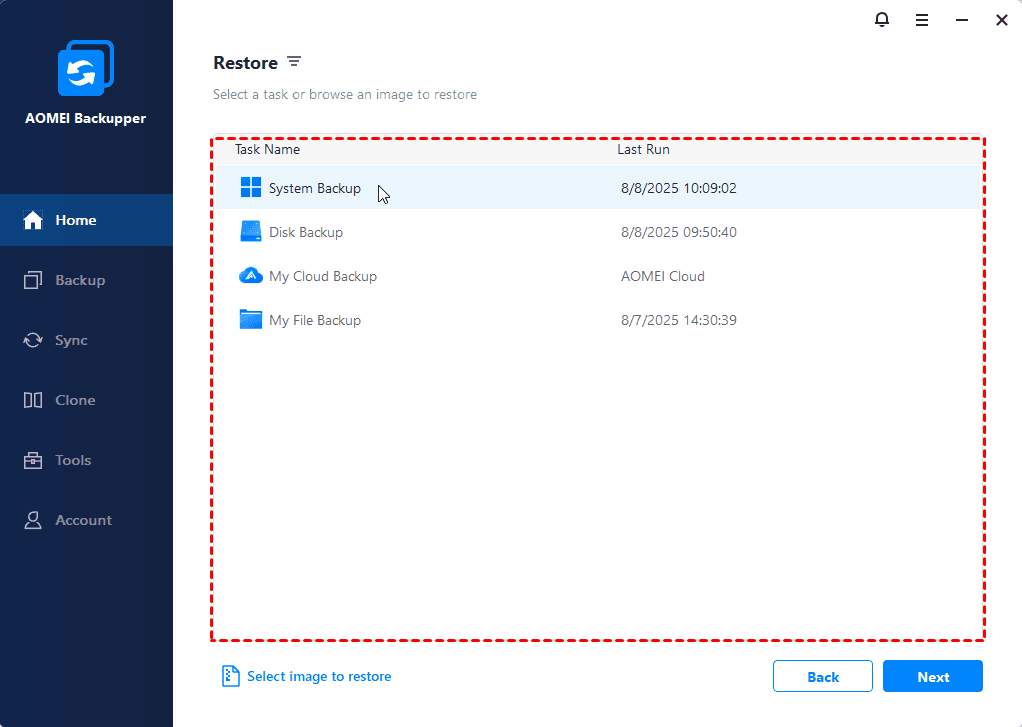

1. Go to Restore tab and choose Select Task or Select Image File to locate the system image you want to restore.

Select Backup Image

2. Choose Restore this system backup and click Next.

Restore Entire Backup

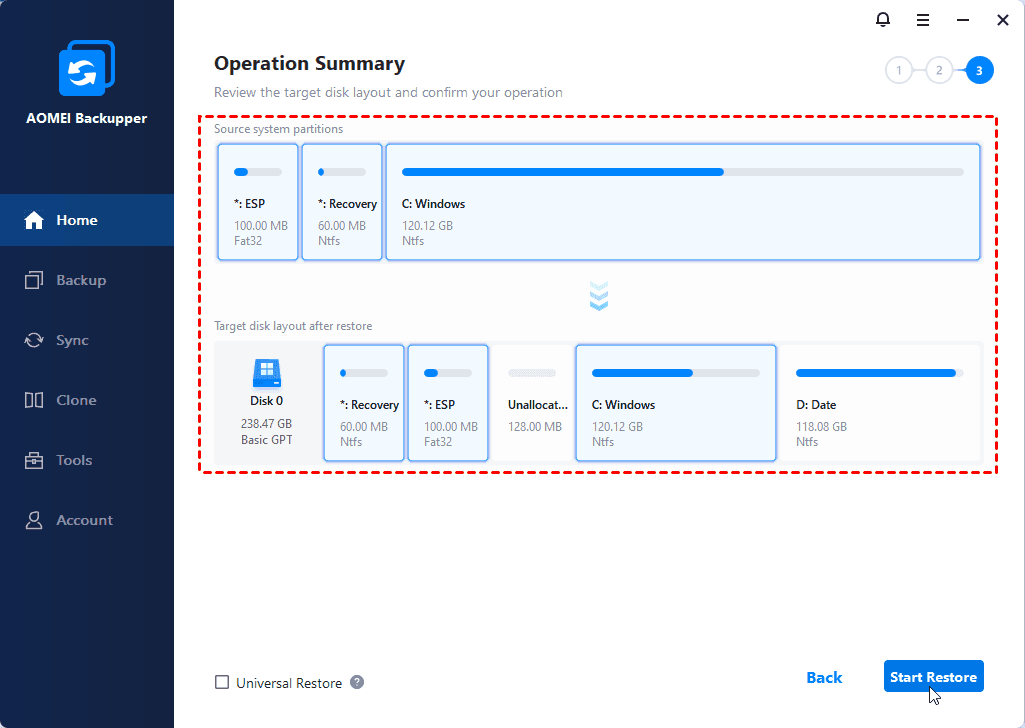

3. Confirm the operation and click Start Restore. If the system image is created on different hardware, remember to tick Universal Restore.

Preview Restore

Centralized Tool to Run System Restore in Windows Server 2016

The best enterprise backup software - AOMEI Cyber Backup provides a convenient and reliable solution for centralized backup management of all Windows operating systems.

  • It enables you to create system/disk/partition backup for a bunch of Windows PCs and Servers, supporting Windows 11/10/8.1/8/7 and Windows Server 2022/2019/2016/2012 (R2)/2008 (R2).
  • You can schedule a backup task to run daily/weekly/monthly using the full/incremental/differential backup method.
  • You are allowed to restore the backup image to the same computer or different computer.
  • If your backup has multiple versions, you can choose to restore from any point you want.

Download AOMEI Cyber Backup now to have a try!

Download Free TrialEasiest Enterprise Backup Software
Secure Download

Windows Server system backup with AOMEI Cyber Backup

To create a system image for Windows Server 2016, just log in AOMEI Cyber Backup, and add the Server 2016 device that you want to backup. Then click Backup Task on the left menu bar and select Backup Task Create New Task.

Create New Task

Windows Server system restore with AOMEI Cyber Backup

1. Run and log in AOMEI Cyber Backup.

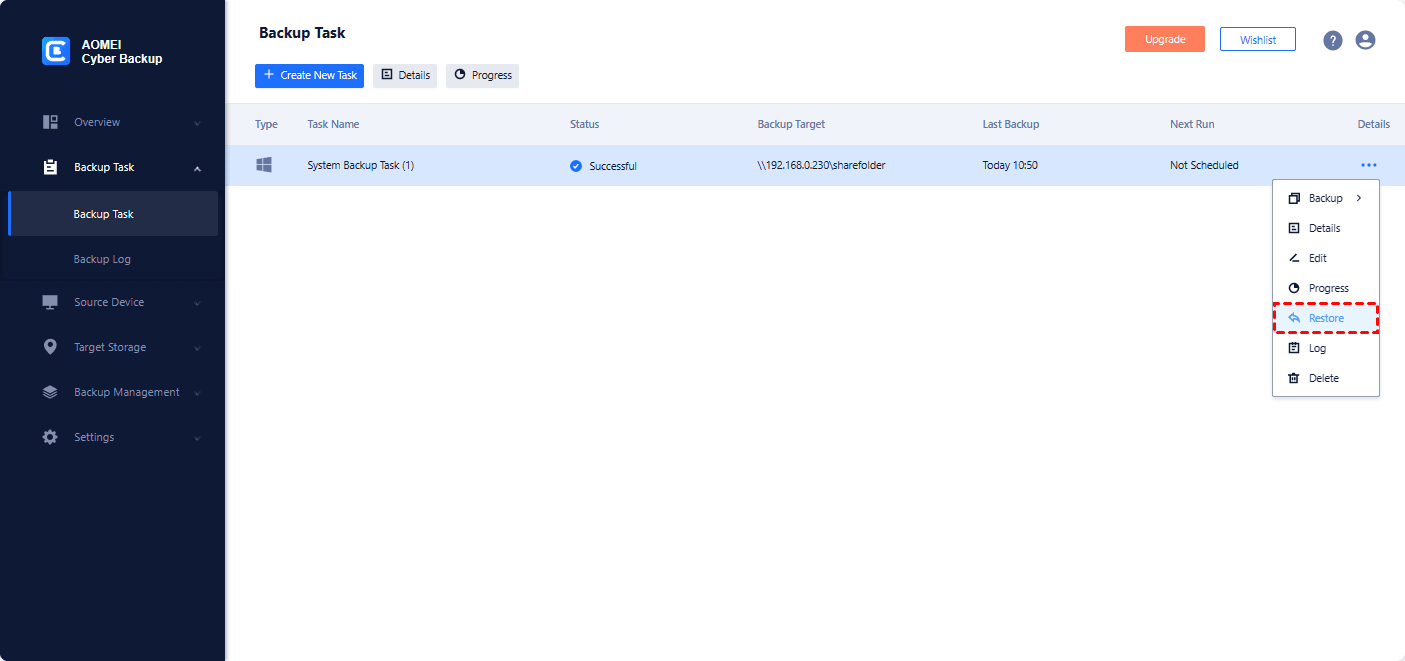

2. Click Backup Task on the left menu bar and click the three dots icon on the system backup task you created before. Then select Restore.

System Restore

3. Select the restore content, including the restore version and restore method. Here I choose the latest version and Restore the entire system.

Restore Entire System

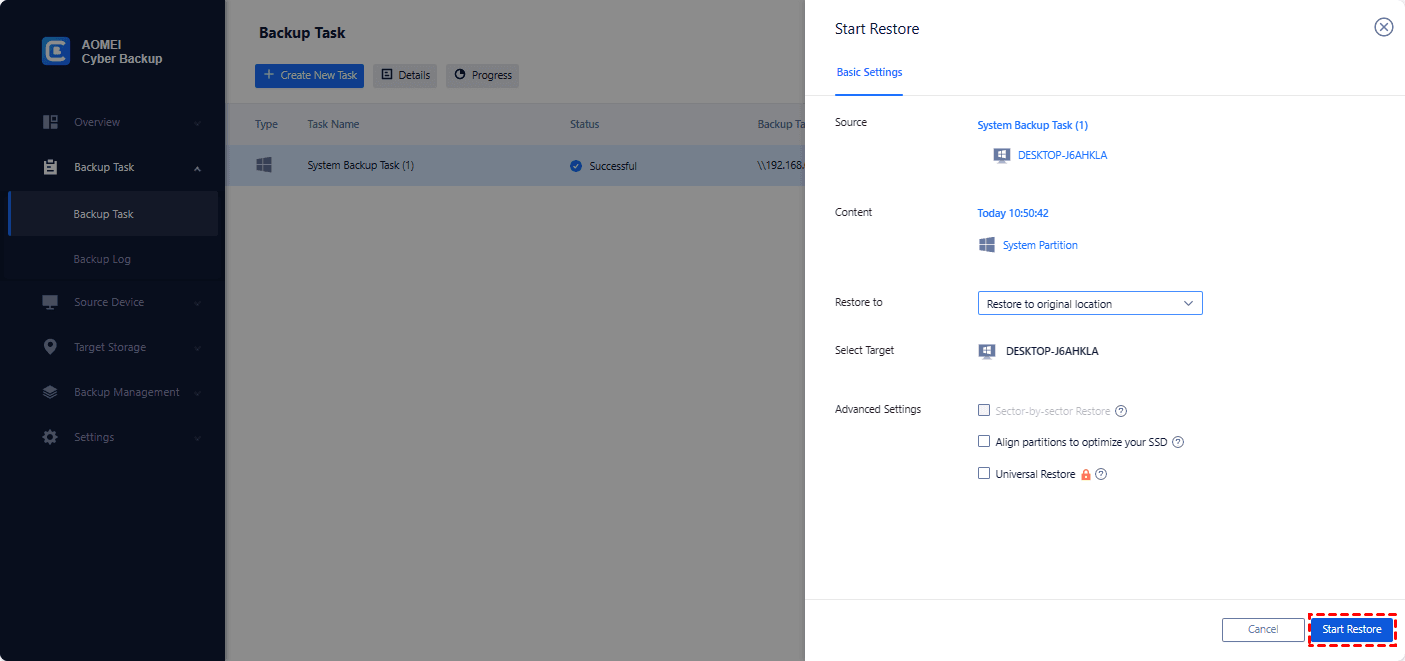

4. If you are restoring system image to the same device, the Restore to original location option is selected by default. Click Start Restore to launch the system recovery process.

Start Restore

◑ If you are restoring system image to a different device, click Source Device Windows Add Windows Device to add the target device first.
◑ It is advised to enable the Universal Restore option when restoring to another computer, thus ensuring secure boot.


Can you do system restore in Windows Server 2016 when there’s no restore point option? Well, the built-in tool Windows Server Backup is an answer. It enables you to create a backup including system state, and recover it when needed. But since the operation isn’t very simple, I prefer to use AOMEI Backupper or AOMEI Cyber Backup as the alternative to backup and restore system or the entire disk.

What’s more, they offer the Universal Restore feature to restore system image to server with different hardware. In addition to backup and restore, AOMEI Backupper provides the powerful clone feature which allows you to clone hard drive in Windows Server.

If want to protect unlimited Servers and PCs within your company, AOMEI Backupper Tech Plus could be a better choice.
