Stepwise Guide: How to Install Windows 11 ISO on VirtualBox

This article has presented you with the specific steps to simply install Windows 11 ISO on VirtualBox. And there is a free way you can use to backup VirtualBox to a place from losing data.


by Clytze Updated on October 25, 2022

Share this: instagram reddit

Quick Navigation:

Overview of VirtualBox

VirtualBox is an open-source virtual machine developed by Innotek, a German company, and produced by Sun Microsystems, which was officially renamed Oracle VM VirtualBox after Sun was acquired by Oracle. VirtualBox is easy to use, suitable for enterprise and home use, and supports Windows, Linux, and Mac systems hosts. The systems that can be virtualized include: all Windows systems supported, Mac OSX (both 32bit and 64bit), Linux (2.4 and 2.6), OpenBSD, Solaris, and IBMOS2.

With VirtualBox, you can convert physical PC to virtual machine on the currently running system, install systems and software on this virtual computer, and operate it just like a real PC. It is often used to simulate the installation of unfamiliar operating systems on a real PC for easy learning and mastering. It is not necessary to use your hard drive's partition to install, which is safer for your computer and does not take up a lot of storage space.

By now, you may wonder “if I want to install Windows 11 on VirtualBox, how do I set it up and how do I get the Windows 11ISO file? Don't worry, the following content will answer your questions one by one.

Windows 11 ISO VirtualBox

Why need to install Windows 11 on VirtualBox

Before we perform the exact steps to install VirtualBox for Windows 11 and other OS, it is necessary to figure out why we need to do that. The reasons for this may be attributed to the following points.

1. Security, to prevent computer from viruses

Many people value the functions of cracked software and have to compromise to install it, even if the antivirus software reports viruses, while in fact, cracked software is usually a breeding ground for viruses. For the sake of computer security, software from unknown sources should be installed on VirtualBox.

2. Experience different systems

Commonly used computer systems are Windows, Linux, Mac, in order to be able to experience the three different types of systems, the installation of virtual machines is the best choice.

3. Work Needs

Software developers often face the problem of testing the compatibility of software on older systems, and need to install various older versions of systems in a virtual machine to facilitate testing.

After knowing the importance of installing VirtualBox, let's explore how to install Windows 11 on VirtualBox together.

Step-by-step guide to installing Windows 11 on VirtualBox

In this section, you will be provided with the complete steps to set up VirtualBox running Windows 11. Windows 11 system image files usually contain Windows 11 operating system files, boot files, partition table information, etc., and can be used for system installation and repair. Follow the given steps to settle this issue with ease.

1. Firstly, you need to enable Windows 11 ISO download for VirtualBox, you can get the latest version of Windows 11 ISO file from the official website. The file size of the ISO file is around 5GB.

Tip: ISO is one of the storage formats for CD-ROM images (CD Mirror) on your computer, because it is a file stored according to the ISO-9660 standard for CD-ROM file systems, so it is usually named with the suffix .iso in your computer, commonly known as an ISO image file.

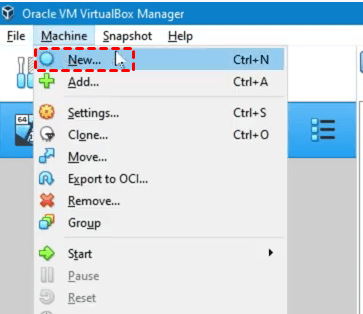

2. We can continue with installing VirtualBox and creating the virtual machine. To install Windows 11 we will need to create a new virtual machine in VirtualBox. Just open VirtualBox Manager and click on New.

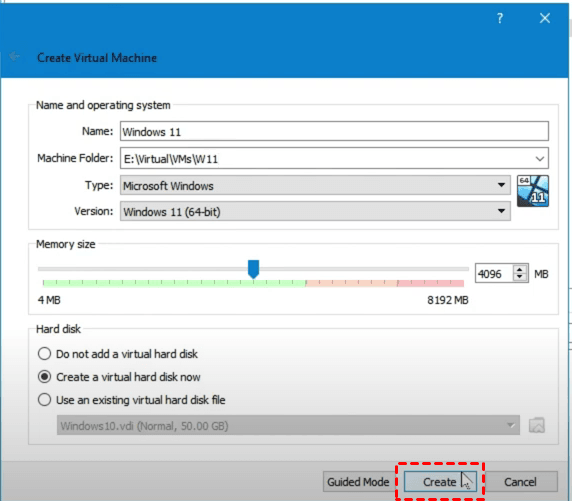

3. Give your VM a name, select a location to store the VM (make sure you have at least 20 GB disk space free), set type to Microsoft Windows, set version to Windows 11 (64-bit), give the VM at least 4096MB Memory (more is better, but keep some left you for computer self). Click on Create.

Create Virtual Machine

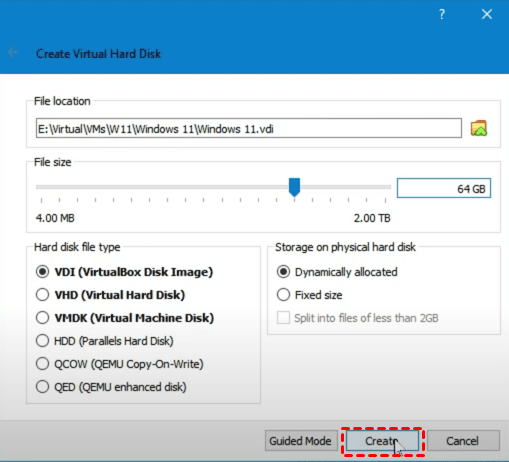

4. Next, you will need to create the Virtual Hard Disk, which requirements for Windows 11 are 64 GB disk space. Click on Create.

Create Virtual Hard Disk

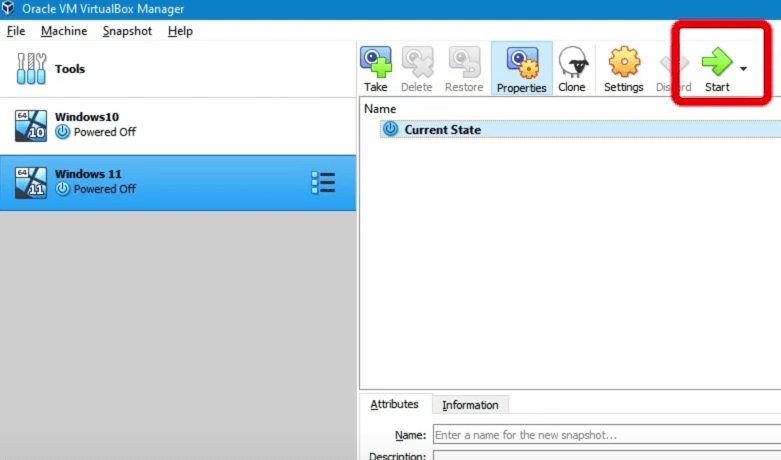

5. The virtual machine is now created. We are now ready to start our new virtual machine and install Windows 11. In VirtualBox, click on Start to start your new VM. VirtualBox will prompt you for a start-up disk.

6. Click on Add to select the Windows 11 ISO file that we downloaded. Select the file and click on Choose. Click on Start to start the VM with the Win 11 ISO disk.

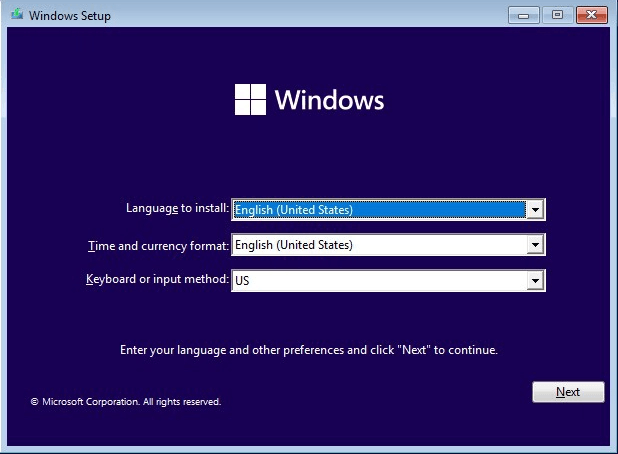

7. When you see the blue Windows Setup screen, press Shift + F10, this will open a command prompt.

Windows Setup

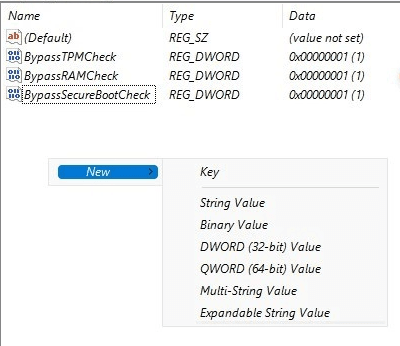

8. In the command prompt, type regedit and press Enter. Navigate to the path in the registry: HKEY_LOCAL_MACHINE\SYSTEM\Setup. Right-click and create a new key: LabConfig to create the DWORD 32bit values below and set the data to 1 for each value.

  • BypassTPMCheck
  • BypassRAMCheck
  • BypassSecureBootCheck

Set Value

Close the registry editor and exit the command prompt.

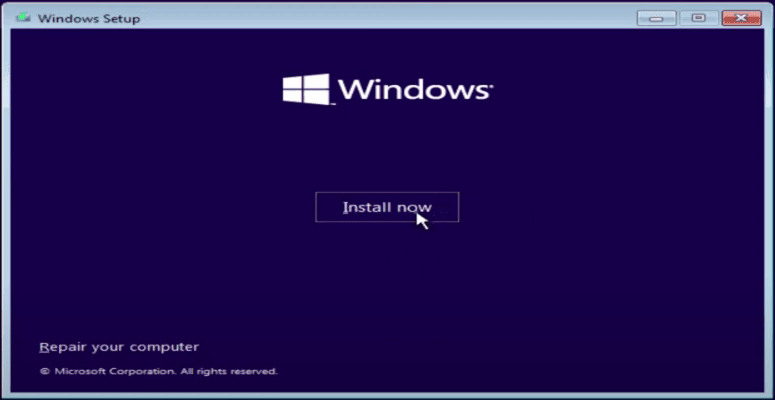

9. Select the language that you want to install and click Next. On the next screen, click Install now.

Install Now

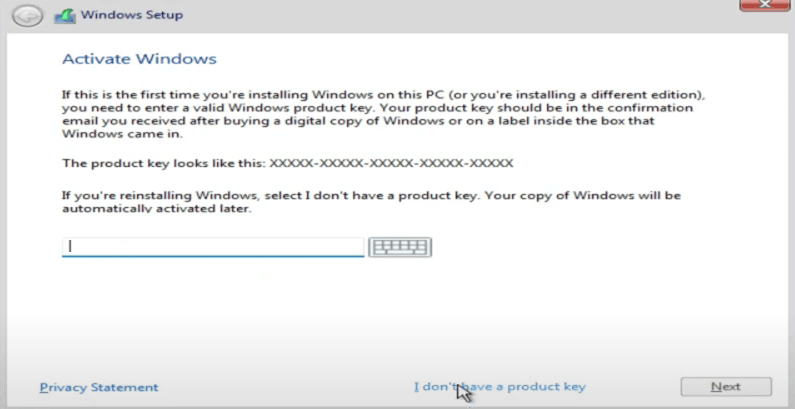

10. Simply click I don’t have a product key. Choose which version of Windows 11 you want to install. Just pick Windows 11 Pro and click Next. Accept the user agreement and click Custom: Install Windows only on the next screen.

Active Windows

11. The last step is to select the disk to install Windows 11. Windows 11 will now be installed in your VirtualBox.

12. The VM will reboot after the installation. During the setup wizard, you will get the option to sign in with your Microsoft account. And then you can use VirtualBox running Windows 11.

Protect VirtualBox Windows 11 from losing data with AOMEI Backupper

As the number of virtualized servers has increased, backing up virtual machines has become a critical action. This can be attributed to the following three main reasons.

  • Before making big changes to your virtual machine, create a backup in case the change does not meet your expectations or problems arise and you can restore it.
  • Avoid losing critical data. Assuming you have hundreds of virtual machines and have never backed up your virtual machines, your losses would be immeasurable in the event of a system crash or other accident, such as a virus attack, disk failure, hardware failure, etc.
  • Reduce re-installation time. A fast and reliable disaster recovery solution is critical to your business. If your virtual machines are unavailable and cannot be recovered in a short period of time, re-downloads will be costly in terms of labor and time.

Now you have a clear idea of why you need to backup your VirtualBox. In order to protect the important data on your VirtualBox, you need a professional backup software to help you manage to do it. AOMEI Backupper Standard, as the best free backup software, can help you create a complete backup of your system on the virtual machine and effectively protect your data from being lost. It has the following significant advantages.

As the best way to backup Windows 11 or other Windows OS on VirtualBox, it allows you to backup to various paths such as a local path, NAS devices, USB, external hard drives, etc.
It offers different kinds of backup types, including system backup, disk/partition backup, and file backup.
And you can choose to run this task automatically with the help of its Schedule Backup, you have 3 options, daily, weekly, monthly. More specifically, you are capable to set the backup date, time and intervals during this process.
It supports all Windows PC operating systems: Windows 11/10/8.1/8/7/Vista/XP, 32 bit and 64 bit. For Windows Server users, try AOMEI Backupper Server.

Moving on, I will show you the graphical steps to backup VirtualBox running Windows 11 to an external hard drive. Just download and install AOMEI Backupper Standard on your VirtualBox to have a try.

Download FreewareWin11/10/8.1/8/7/XP
Secure Download

Step 1. Connect the target hard drive to your computer and set in VM to make it connected to your VirtualBox. Launch this freeware, and click System Backup under the Backup tab.

System Backup

Step 2. The software will automatically select the system partition for you. You can select the hard drive where you want to store your backup files.

System Backup Location

☎ You can click Options, Schedule Backup, and Backup Scheme to enjoy more features.

Options: You can write comments for system image to distinguish it from other backup tasks, compress, encrypt (supported by Professional  version) and split image files, etc.


Schedule Backup: You can enable it to set up daily, weekly, monthly to automatically backup Windows 11. Also, you can upgrade to advanced edition to enjoy event triggers or USB plug in option.

Schedule Settings General

Backup Scheme (paid edition): This helps you to automatically delete old backups to save backup disk space and improve the backup efficiency.

Backup Method

Step 3. Confirm the settings, and then click Start Backup to easily backup VirtualBox Windows 11 to the external hard drive you specified.

Now you have a system backup image, once there is something goes wrong, you can use it to restore on any computers without download and set up again.

How to restore the system image backup once needed:

Click Restore > Select Task or Select Image File. Then, follow the wizard to complete the system recovery process.

Select Task

In addition, you can create a bootable USB to boot your computer in case it ever fails. If you do not have a USB or CD/DVD, you can choose to create Recovery Environment (available in advanced version) on your current computer. You can then access this software directly in the Recovery Environment without the device the next time you boot the system.

Recovery Environment

In the end

That's all related to how to install Windows 11 ISO on VirtualBox as well as protect it from data loss. With the help of AOMEI Backupper Standard, you can backup your virtual machine in simple steps. Moreover, you can customize the backup interval and backup to any storage device such as external devices, USB devices, CD/DVD, NAS, etc.

Moreover, it has more practical features including scheduled incremental or differential backup, create bootable media, PXE boot tool, universal restore, etc. You can easily tackle blue screen on Windows 11 issue. Don't wait until a failure occurs to regret it, create a backup of your virtual machines now!
