How to Install Free Windows 11 VM on VMware Workstation

How to upgrade Windows 10 virtual machine to 11? This article will give the efficient method to download and install the latest Windows 11 virtual machine for free even without TPM.


By Crystal / Updated on October 18, 2023

Share this: instagram reddit

Is Windows 11 virtual machine free

Microsoft provides free Windows 11 Enterprise virtual machine (20 GB) for free download from official website or Windows Insider Program, and it also offers free download of Windows 11 ISO image file (5 GB) that can be used to create a new Windows 11 virtual machine.

Windows 11 has changed the interface and internal features including the new menu, taskbar and support for Android apps. It allows installing free Windows 11 for the Windows 10 users.

Windows 11

Prerequisites of Windows 11 virtual machine free download

Windows 11 virtual machine is now available for free from Microsoft website. Before you download the free Windows 11 virtual machine, you need to make sure of the following things.

1. Download the Windows 11 .iso file/ virtual machine to a computer, USB or external drive with sufficient storage space.

2. Network connection.

3. Check CPU: Only available for devices with x64 processors (a 64-bit CPU). Go to Settings >> System >> About.

4. Check the system requirement: Windows 11 device specifications

Windows 11 hardware requirements

Tips: If your device is already running Windows 10 (version 2004 or later), you can use the PC Health Check app to assess compatibility. Free updates are available through Windows Update in Settings >> Update and Security.

How to download Windows 11 virtual machine

If you downloaded the installation package of Windows 11 Enterprise from official website or Windows Insider Program, you will get Windows 11 virtual machine files after unzipping it.

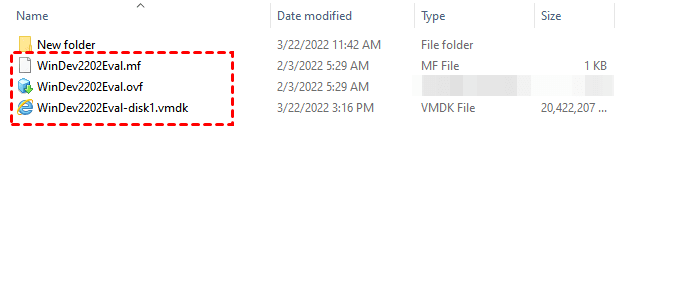

select Windows 11 vmdk

Besides, it’s an efficient method to download Windows 11 ISO image file to create a virtual machine. Next, I will introduce the detailed procedures about how to install free Windows 11 VM.

Tips: You can also download Windows 10 64 bit ISO for VMware from Microsoft website. The Windows 10 ISO image for VMware is for free download.

How to install free Windows 11 VM

You can create a free Windows 11 virtual machine directly by mounting the ISO file, or use the ISO file to create a new virtual machine.

Mount the ISO file to launch Windows 11 virtual machine

1. Download the ISO file of Windows 11. Then locate it and right-click the file, select Properties.

2. On General page, select Change and specify Windows Explorer to open it. Click Apply.

3. Right-click on the ISO file and select Mount.

mount ISO file

4. This will create a “virtual” bootable disc. Open the files and double-click setup.exe to start Windows 11 setup.

Windows 11 VM

How to create a Windows 11 virtual machine

In this section, all the following steps are based on VMware Workstation to create a free Windows 11 virtual machine.

Create a virtual machine on Workstation:

1. Access to Workstation, click File >> New Virtual Machine.

2. Choose the Typical or Customed type of configuration as you want. Then check the hardware compatibility.

3. Select Install disc image file (iso). Then select Browse to open the ISO file.

select ISO for Windows 11 VM

4. Select guest operating system as Microsoft Windows and its version as Windows 10 and later x64.

5. Type the VM name and specify a location to store VM files. Then select firewall type as BIOS or UEFI. Specify the number of processors and memory size (at least 4 GB) for the virtual machine, 8 GB is more recommended.

specify VM memory

6. Select the Network connection such as NAT, and choose the recommended options for I/O controller and disk.

7. Select Create a new virtual disk for this new VM.

8. Specify disk capacity (at least 64 GB) or more.

specify disk capacity

9. Then check the Customized Hardware, and click Finish.

Install free Windows 11 on virtual machine:

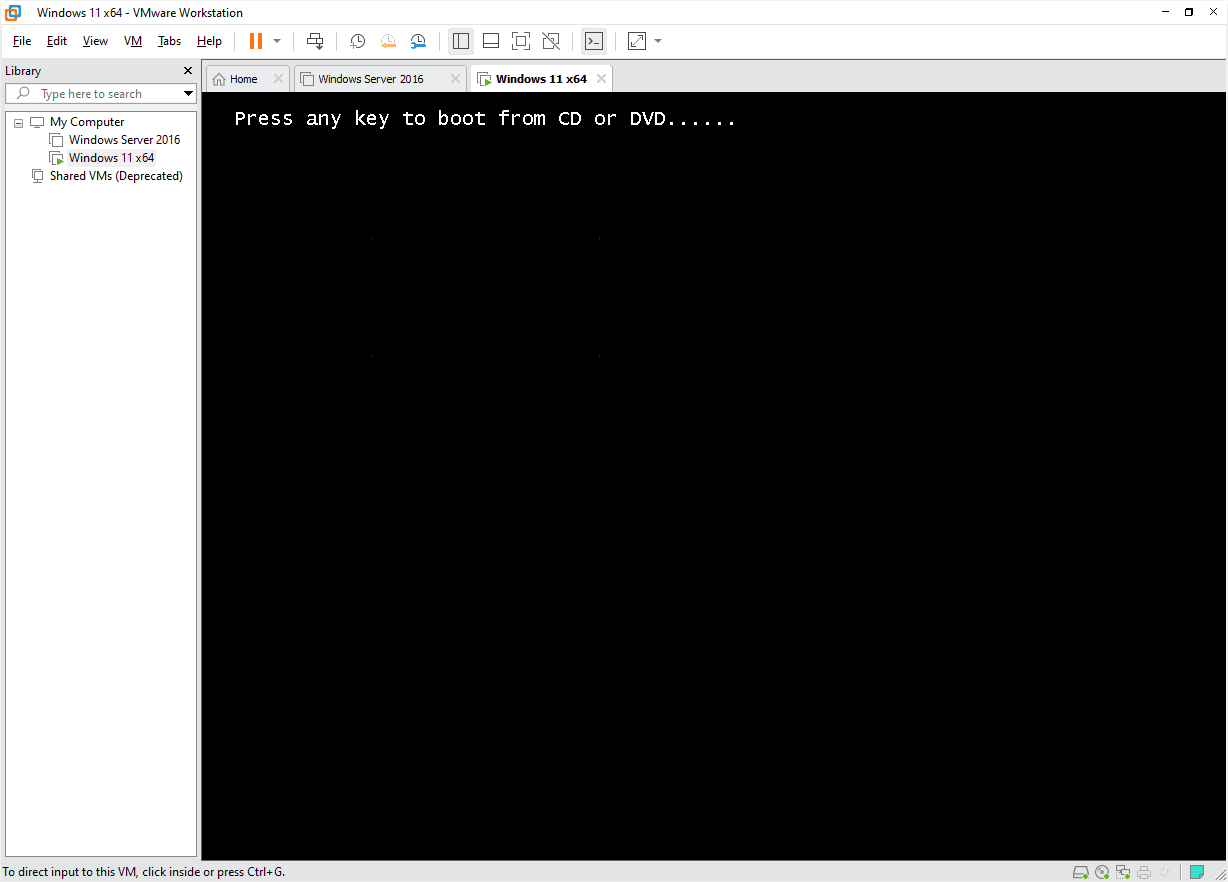

1. Restart the VM and fill in the basic details such as your preferred language, country, and input methods to install Windows 11.

restart Windows 11 virtual machine

2. If you don't have a product key, just click I don’t have a product key. Then select the version of Windows 11.

3. Then select Custom Installation when prompted to choose between Custom and Upgrade and then select your disk. It may take several minutes to finalize the installing process.

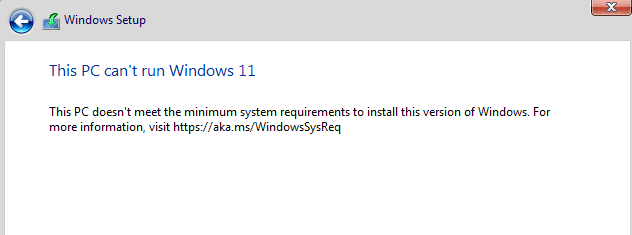

If your machine does not meet minimal requirements for Windows 11 installation, it will show a message: This PC can't run Windows 11. But if you still want to install Windows 11 on virtual machine, so set up the following settings.

Windows 11 cannot run

Go to VM >> Settings >> Options >> Access Control >> Encrypt VM.

Back to Hardware >> Add >> Trusted Platform Module.

install Windows 11

How to keep Windows 11 VM safe for free

Data security is very necessary for any business. After the successful installation of Windows 11, it can run your workloads efficiently. For the important VM data, I recommend you to make backups, especially for businesses.

The built-in features seem to be inefficient for example exporting VM, cloning VM or manually copying VM files. As a result, many users would turn to professional virtual machine backup software for better protection. But if you don't have a considerable budget for this, you'll find the available options are very scarce. So how can you protect Windows 11 virtual machines for free? I will provide some ideas here.

If you are running Windows 11 VM on VMware Workstation

Then there is no way for you to use agentless backup solution for centralized management of your virtual machines. Instead, you will need agent-based backup solution to back up your virtual machines as if they were physical machines.

To do this, you can pick a free backup software that supports Windows 11, AOMEI Backupper Standard, for example. You can download it from the button below.

Download Freeware Win 11/10/8.1/8/7/XP
Secure Download

AOMEI Backupper can be installed on a Virtual Machine to back up the operating system, configuration files, installed programs, personal data, etc. With it, you can backup disk to physical computer or other computers via network. Also, you can backup a virtual machine to external hard drive, such as, USB flash drive, HDD, or SSD.

Start Backup

If you are running Windows 11 VM on free or paid versions of VMware ESXi, or Hyper-V

Then you want a centralized backup solution to protect your multiple virtual machines without installing agent on each VM. Here you can use the professional and free backup software AOMEI Cyber Backup. It can back up VMware and Hyper-V virtual machines automatically through the central console and perform flexible schedule backups with easy steps.

The enterprise-level backup software for virtual machines can

  • Streamline the backup process
  • continuously monitor the status
  • Send email notifications in case of errors
  • simplify operations into just three easy steps
Download FreewareVMware ESXi & Hyper-V
Secure Download

AOMEI Cyber Backup


This article introduces the solution to create a free Windows 11 virtual machine that requires more complex system and hardware settings. After you have successfully created Windows 11 virtual machine, it’s important to backup virtual machine timely that ensures the security of your business.
