Migrate Windows OS from Physical Computer to Virtual Machine

Want to do some risky operations without damaging the physical computer? Continue to see below and learn to migrate operating system (OS) to virtual machine.


by Ivy Updated on October 20, 2022

Share this: instagram reddit

Is it necessary to migrate OS to virtual machine?

"I have Windows Server 2003 installed on my server. I'd really like to be running it via VMWare EXSi as a virtual machine, but I don't know what have to reconfigure the whole deal. Is there a relatively painless way to move it to a virtual machine? It will be staying on the same box with the exact same hardware... nothing changes."

Like this user, there are a lot of users also want to move operating systems to virtual machine. But some of them may have a similar question: is it necessary to migrate OS P2V? I can do anything on my physical computer, why do I need to use a virtual machine? It occupies much disk space and my computer may run out of space sooner or later.

Yes, virtual machine takes up much space. But you can enjoy many advantages in virtual machine that physical computer does not have. Here, I’ll explain in details.

  • The most obvious advantages is that you can do any risky operation (eg: test software, do uncertain operation like reinstalling Windows) on virtual machine and it does not damage your physical machine. Even if your virtual machine is damaged, you can restore it with system backup or disk backup.

  • Virtual machine allows you to copy and paste data from virtual machine to physical machine as long as you install the VM Tools in virtual machine. Thus, if you copy and paste data to physical compute before the virtual machine is damaged, you will not lose data.

Need a professional backup and restore software

Like restoring image to a different computer, you may encounter boot failure because of hardware issue if you want to transfer OS from physical computer to virtual machine. Because the hardware of virtual machine is determined by the physical computer.

So, you need to use a professional backup and restore software that can solve dissimilar hardware issue. Here, I highly recommend you AOMEI Backupper Server. It has 2 magic features you may need.

  • Create Bootable Media: With this feature, you can create a bootable media to boot from physical computer or virtual machine. It has 3 options, including USB bot device drive, Burn to CD/DVD, or Export ISO file. You can select one of them according to your needs.

  • Universal Restore: This feature is designed for users who want to restore virtual machine on a computer with different CPU, motherboard, etc. And its aim is to ensure secure boot after restoration.

How to migrate OS P2V and boot successfully

Whether your virtual machine is on the same computer or different computer, you can use AOMEI Backupper Server. And all the steps are very similar, so you can use the following steps as a reference.

The entire process are divided into 3 parts, including create system image backup, export ISO image file, restore virtual machine with ISO file. Now, let’s start to move OS to virtual machine.

Part 1: Create system image of physical computer

To backup system, you need to use “System Backup” in AOMEI Backupper Server. Just Download AOMEI Backupper > select “System Backup” in the main page >choose destination path for your backup and click “Start Backup”. For destination path, you can backup to external hard drive, USB drive, cloud drive, NAS, etc as long as your computer can recognize it.

Download Free Trial Server2008/2012/2016/2019/2022
Secure Download

System Backup

Part 2: Export ISO image file of physical computer

To export ISO file, you will use “Create Bootable Media” of AOMEI Backupper. Open this software, go to “Tools” > “Create bootable media” > select bootable disc type and PE boot mode > then tick “Export ISO file” in the “Select Bootable Media” window and click “Next”. After that, save the ISO image file to USB drive.

Create Bootable Meida

Part 3: Transfer OS to virtual machine and boot from it

Step 1. Download the latest version of VMware, install and launch it.

Step 2. Change the connection of virtual machine. Open a virtual machine using VMware, go to “VM” and “Settings”, then select “CD/DVD” and “Use ISO image file”, click “Browse” to find the image file on your USB and hit “OK” to save the changes.

Use Iso Image File

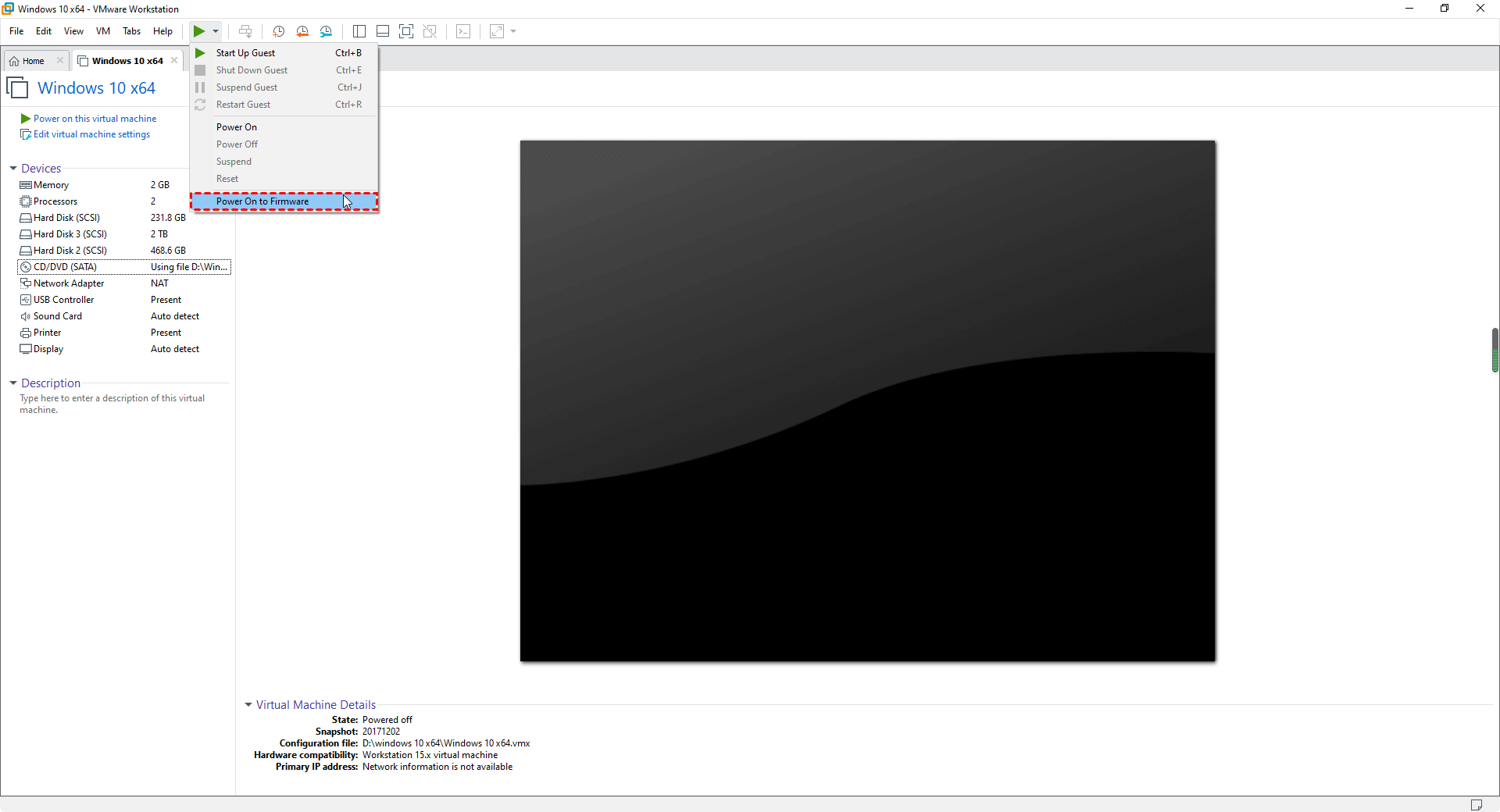

Step 3. Boot from the ISO image file created by AOMEI Backupper. Go to “Power” option, select “Power On to Firmware”, go to the “Boot” tab and use “+” to move CD/DVD as the first boot option, then press “F10” to save changes and boot from the image file. A few seconds later, you will see the main page of AOMEI Backupper.

Power On To Firmware

Step 4. In the main page of AOMEI Backupper, click “Restore” and “Select Image File”.

Select Image File Winpe

Step 5. Tick “Restore this system backup” and click “Next”.

Restore Entire Backup

Step 6. Select a destination path for your backup and click Next.

Select Destination

Step 7. If your virtual machine is on a computer with different hardware, the “Universal Restore” feature will be checked by default. If not, just ignore it. Then, click “Start Restore”.

Migrate OS to Virtual Machine

There’s another way to replace bootable ISO file called PXE Boot Tool. Using PXE Boot Tool to do universal restoration.
Besides migrating OS to VMware, AOMEI Backupper also supports migrating OS from virtual machine to physical computer (V2P) and from VM to VM (V2V).
There are several editions of AOMEI Backupper. You should go to edition comparison  and choose the right one according to your situation and needs. Usually, FREE Standard edition is recommended; However, if you need advanced features, you should try AOMEI Backupper Professional or other advanced version.

Written in the end

Migrating OS from physical computer to virtual machine is very similar to migrate computer to another one. You can use backup and restore feature to achieve this goal. During the restoration process, the most important part is to tick “Universal Restore” feature if your computer has different hardware.

By the way, in virtual machine, using ISO image file is more convenient than USB device or CD/DVD. So, you’d better tick “Export ISO file” in the “Select Bootable Media” window.
