Samsung Data Migration MBR to GPT Cloning (2 Ways Included)

If you are a Samsung SSD user, you must be familiar with Samsung Data Migration. Learn how to clone MBR to GPT SSD with Samsung Data Migration and get the best equivalent from this article.


By Lily Updated on August 11, 2023

Share this: instagram reddit

About Samsung Data Migration MBR to GPT cloning

Samsung Data Migration is designed by Samsung for users who want to clone HDD to Samsung SSD. It helps to transfer all the data on the old hard drive to a new Samsung SSD. What makes it most attractive is that users can go back to their previous operating system without reinstalling it. Both MBR and GPT disks are supported in Samsung Data Migration.

You may clone MBR disk to GPT disk to enjoy the advantages of GPT disk, such as create more than 4 primary partitions, and make full use of a disk larger than 2 TB. Please note that Windows can only boot from GPT on UEFI-based computers running 64-bit versions of Windows 11, 10, 8, 7, Vista, and corresponding server versions. Make sure your computer meets the requirement if you are migrating MBR OS to a GPT disk.

How to clone MBR to GPT SSD with Samsung Data Migration

To clone MBR to GPT SSD by Samsung Data Migration, there are two things you should confirm:

As Samsung Data Migration only supports Samsung SSDs listed in the User Manual, your target GPT SSD must be one of them.

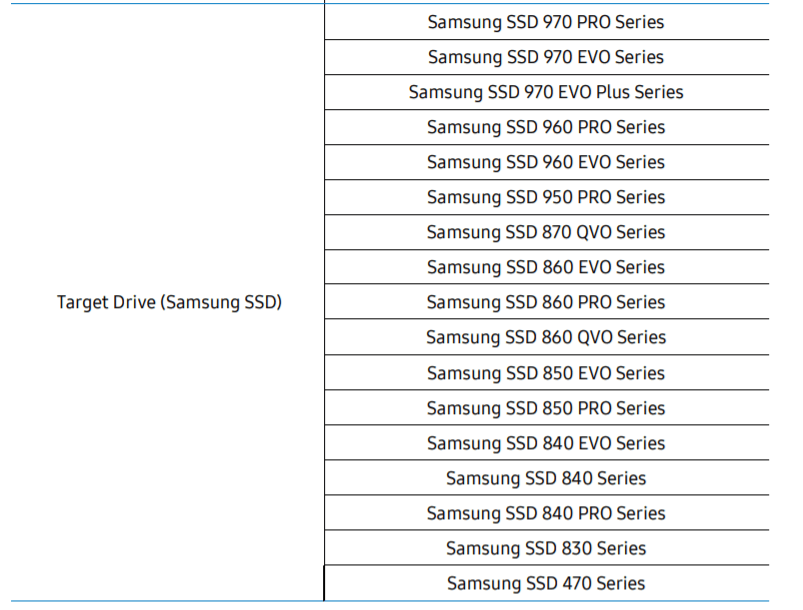

Target Samsung SSD

Samsung Data Migration requires an operating system installation on the source disk, so your source MBR disk must be the system disk.

How to clone MBR to GPT SSD with Samsung Data Migration step by step?

1. Connect Samsung SSD to your computer and make sure it can be recognized. Run Samsung Data Migration. It will automatically select the drive with OS installed as the Source Drive.

2. Select the Samsung SSD you just connected as the Target Drive. If you don’t see your SSD, click the Refresh button at the right bottom to make it detected.

Samsung Data Migration Choose Target Drive

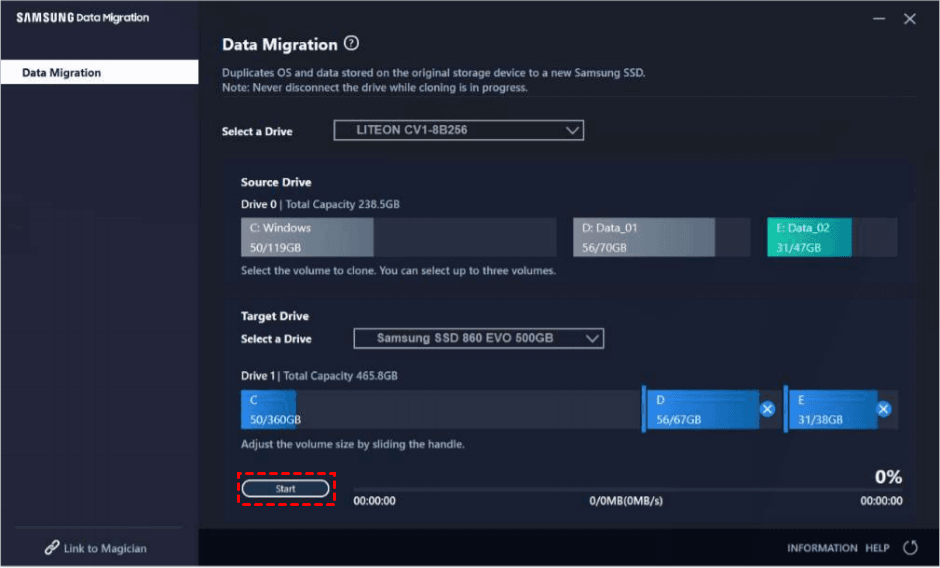

3. Select additional volumes that you wish to clone besides the C: volume. You can select at most two more volumes.

Select Additional Volumes

4. Click on Start to begin the migration process. Once the cloning process is complete, the computer will shut down automatically within 20 seconds. Replace the old hard drive with the new Samsung SSD and you will get the system back immediately.

Start Clone MBR to GPT

✎ Note: A difference of a few GB of data capacity between the source and the target disk is normal after cloning.

Now you see how Samsung Data Migration MBR to GPT cloning works. However, some users are confronted with Samsung Data Migration cloning failed error which is caused by dynamic source disk, instant PC recovery software installed on the system and even no specific reasons. At this time, what you need is Samsung Data Migration alternative.

Advanced way to clone MBR HDD to GPT SSD

The prime disk cloning software, AOMEI Backupper Professional, can be the best alternative to Samsung Data Migration. It supports Windows 11/10/8.1/8/7/Vista/XP. Compared to Samsung Data Migration, it has the following benefits:

● It allows you to clone MBR disk to GPT SSD of different brands, including Samsung, SanDisk, Seagate, WD, and PNY, etc.
● The source disk can either be a system disk or a data disk.
● It enables you to clone the entire disk via Disk Clone or migrate OS only from MBR to GPT via System Clone.
● It offers the SSD Alignment feature which can help to improve the reading and writing speed of the destination SSD.

How to clone MBR to GPT via AOMEI Backupper with secure boot

✎ Note: Backup files on the destination SSD before cloning, because it will be overwritten during the cloning process.

Step 1. Connect the GPT SSD to your computer and make sure it is detected. Install and run AOMEI Backupper. Click “Clone” on the left pane and select “Disk Clone”.

Choose Disk Clone

Step 2. Select the MBR disk as the source disk and click “Next”.

Select MBR Disk

Step 3. Select the GPT disk as the destination disk and click “Next”.

Select GPT Disk

Step 4. Tick “SSD Alignment” to improve the performance of the destination SSD. Confirm the operation and click “Start Clone”.

Start Clone

Step 5. (Optional) To boot from the cloned GPT disk, you should replace the old MBR disk with the GPT disk, enter BIOS and change Legacy to UEFI boot mode.

Tips: If your system supports booting from a GPT disk, that is Windows 11/10/8/7/Vista 64 bit, AOMEI Backupper will conduct MBR to GPT cloning without disk conversion; otherwise, you will be prompted to convert the GPT disk to MBR to make sure the cloned hard drive is bootable after cloning.


It is simple to realize Samsung Data Migration MBR to GPT cloning, but it only applies to Samsung SSDs and you may get stuck in Samsung Data Migration cloning failed error. With AOMEI Backupper, you can clone MBR to GPT SSD without the SSD brand limitation. Besides, it enables you to clone dynamic disk in Windows 10 and create a mirror backup. Try it now to discover more!
