By Lily / Last update May 9, 2022

Content of this article:

Need help: how to transfer operating system to new drive without reinstalling

"I have an old 120GB hard disk drive, and now I want to upgrade hard disk by transferring operating system to another hard drive without reinstalling everything because I am tired of the low disk space problem. It makes storing new data and installing new applications impossible. The most unbearable point is that the computer works at a very low speed. So is it possible to transfer OS to another or new hard drive without reinstalling?"

Transfer OS to Another Hard Drive

Of course, the answer is Yes, you can definitely migrate OS to new drive without reinstalling Windows and application you will use in the near future. But Windows won't make this process simple, so you need to turn to third-party software for help. The simplest way is to clone entire OS to a new hard drive or SSD to gain big capacity or better performance.

Many users have reported the disk won't boot after clone, and this isn't the only case you may encounter during the process. Thus, to transfer OS to new hard drive while ensuring secure boot, you need professional OS migration software. Here I strongly recommend you AOMEI Backupper Professional. For details, please keep reading to learn more.

Why transfer OS to new drive?

Before transferring OS to another hard drive with AOMEI Backupper, you still need to get the reasons why do this, so that you know exactly what you are doing.  There are two main reasons in the following.

1. The system partition or entire disk is out of space. This is a very common reason for all computer users. In general, the disk comes along with your computer is very smaller. In addition, you may install many new programs and add a larger number of new files to your computer. At last, you will get a low disk warning message.

2. The computer runs slowly and you want to get better performance. After using a computer for a period of time, you may find that your computer does not run smoothly as before. Then, you may want to transfer operating system to new hard drive or directly move OS to SSD.

Best OS migration software to clone OS to new drive

AOMEI Backupper Professional has been regarded as one of the best system clone software to help you clone OS to another hard drive in Windows 11/10/8/7/XP/Vista and resolve problems for cloning. It is widely used by 50+ million users, so please feel free to use it.

It provides two ways for successfully cloning OS, System Clone and Disk Clone. You can choose the way as per your needs.

System Clone: It lets you transfer only OS to new drive, for example, clone OS from GPT to GPT, or between GPT and MBR disk. All system-related drives like system reserved partition or UEFI partition will be cloned simultaneously. Furthermore, system customized settings, personal files and installed programs on the system drive will be copied to the target drive as well. Thus, you could get a similar Windows operating environment.

Disk Clone: It allows you to move OS to new drive by cloning entire disk. It uses "intelligent clone" feature by default to help you clone large hard drive to smaller drive, as long as the target space is sufficient for copied stuff. If you want to copy every sector of the selected system drive (usually C: drive) to the target, you can specify a sector-by-sector clone.

With the help of such a powerful cloning tool, you can accomplish the OS moving task effortlessly.

How to move OS to another drive in Windows 10, 11

The process of moving operating system to another drive is quite easy if you use the best OS migration software - AOMEI Backupper Professional. The video below takes transferring OS to SSD as an example, you can take a quick look at how to transfer opearting system to new drive. You can also refer to the graphic tutorial below.

Preparations

1. Connect your new hard drive for cloning

Before you start to move OS to new drive or SSD, you need to install or connect the target hard drive to your computer obviously and make sure it is detected.

  • If the computer is a desktop computer, you can install it internally using the extra slot.
  • If your computer is a laptop, you will need a USB cable, adapter or enclosure to connect the target drive for cloning.

In most cases, the hard drive uses a SATA slot, but it is safe to check before getting a new hard drive. Because there are other disk interfaces, such as M.2, PCIe, IDE, SCSI, etc.

2. Download AOMEI Backupper

Click the button below to download this 30-day free trial software on your computer. And it applies to Windows 11/10/8/7/XP/Vista. For server users, please try AOMEI Backupper Server

Download Free Trial Win 11/10/8.1/8/7/XP
Secure Download

Transfer OS to another hard drive via System Clone

Step 1. Launch AOMEI Backupper Professional, select Clone and System Clone in order.

System Clone

Step 2. The program will automatically select source partitions including OS drive and other boot-required partitions. Therefore, you just need to select another hard drive as destination location (here is Disk2), and then click Next.

Destination Disk

Note: If the destination disk is partitioned, a window will pop up to prompt that this partition will be deleted or overwritten. Therefore, if there is any important data, please backup files in advance.

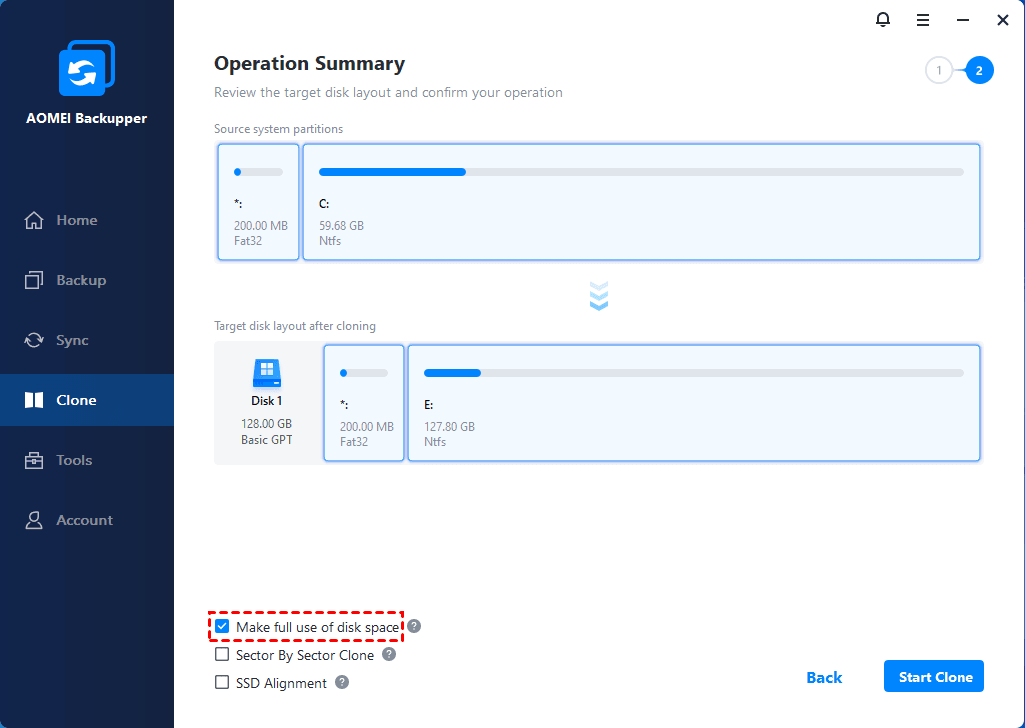

Step 3. On the Operation Summary window, preview the operation (source partitions and target hard drive) and set customized settings. If there is no problem, click Start Clone to clone OS to new drive.

>> Make full use of disk space: If you are currently cloning OS to larger hard drive, it can extend the size of your system partition by using adjacent unallocated space.
>> SSD Alignment: If you are migrating operating system to SSD, you can check it to improve SSD’s performance and prolong its lifespan.
>> Sector By Sector Clone: It applies to copy all the sectors no matter used or not. If you want to migrate OS to new drive with only used sectors copied, just keep the default intelligent mode.

Make Full Use of Disk Space

Notes:
 ♥ The "System Clone" feature in the free trial software can only be demonstrated. To make the cloning process proceed, you need to upgrade to the full version of AOMEI Backupper Professional.
♥ If you want to know how to transfer operating system from one computer to another with dissimilar hardware, please refer to clone old PC to a new one.

Transfer OS to new drive with Disk Clone

Step 1. Run AOMEI Backupper. Click CloneDisk Clone.

Choose Disk Clone

Step 2. Select the current system disk as the source disk and the new HDD/SSD as the destination disk successively.

Choose Disk

Step 3. Confirm the operation and click Start Clone to transfer OS, all the installed programs as well as personal data from old drive to new drive.

Disk Clone Preview

Note: If the target disk is larger, you can click Edit PartitionsAdd unused space to all partitions or Manually adjust partition size to clone and resize hard drive without leaving unallocated space at the end of disk. And you are allowed to convert the destination disk from MBR to GPT if needed.

Edit Partitions

Bonus tip: move OS to another drive for FREE

Honestly, cloning is the easiest way to move OS to new drive or SSD. However, some users want a free way to complete this process. In this case, you need to use another way - Backup and Restore. It's available in the free version of AOMEI Backupper.

To move OS from one hard drive to another on the same computer, the entire process should be:

1. Create a system image backup with AOMEI Backupper Standard.

Go to the Backup tab and select System Backup, select a destination path and click Start Backup. For detailed steps with screenshot, you can refer to create system image

System Backup

2. Create a bootable USB or CD/DVD to boot your computer when it's unbootable.

Go to Tools and select Create Bootable Media, select bootable disc type and media, click Next finally. For step by step guide, please refers to Windows 10/11 repair boot USB.

Create Bootable Media

3. Boot your computer from the bootable media or just start it normally.

Open this software, select Restore and Select Task or Select Image File to find the backup image and restore it to another hard drive. For specific steps, see restore Windows 10/11 to new hard drive.

Select Image File Winpe

Boot from the new hard drive

Step 1. Shut down your computer completely.

Step 2. Install the new hard drive at the location of the original drive using screwdrivers.

Step 3. Then, replace the computer back cover and connect the power cable

Step 4. Start your computer and press the specific key to enter BIOS, you will see it at the initial screen.

Step 5. Go to the Boot tab and change boot order for the new hard drive. After that, save changes and restart to see if it boots from the new drive.

Boot from the Cloned Hard Drive

Conclusion

That’s all for how to move OS to another hard drive. AOMEI Backupper Professional is a powerful OS cloning tool that makes OS or disk transferring easier for common users. It still provides users with many helpful features, such as SSD Alignment, Sector by sector clone, etc. And it ensures that you can successfully boot your computer from the cloned hard drive. Also, it works for moving system reserved partition to another drive.

For advanced users, the software also provides command line clone, i.e. clone hard drive from command prompt, to complete unattended task. For administrators of companies, the Server edition is capable of OS migration to new drive on Windows Server operating systems. For unlimited servers, try its TechPlus edition. Go for it and enjoy your new journey.
