Restoring MBR System Image to GPT/UEFI (Safe Boot)

MBR cannot satisfy users’ storage demand with the development of internet. Restoring MBR system image to GPT/UEFI is necessary to rescue MBR disk.


By Lily Updated on August 14, 2023

Share this: instagram reddit

Why we need to restore MBR system image to GPT/UEFI?

We all know that the system restore can help us to solve some unexpected problems, and we backup the operating system just in case. But with the advanced OS, our files or images are bigger than before. Thus, the traditional MBR disk can’t adapt to the requirements. Or, when we want to replace the old MBR computer with a new GPT computer, we may restore MBR image to GPT disk to enjoy the familiar working environment. First, let’s see the basic knowledge about MBR, GPT, and UEFI.

  • MBR (master boot record), a guide sector in the very front of drive which can only support up to 2TB partition size, and it can only have four primary partitions.
  • GPT-GUID (Globally Unique Identifier) Partition Table, a new standard of disk partition table which can support more than 2 TB partition size, and it can build many partitions. Compared with MBR, it can create larger volume and more primary partitions.
  • UEFI (the Unified Extensible Firmware Interface), which can cover the shortage of BIOS( Basic Input/Output System), is also an interface between PC’s firmware and the OS. No matter MBR disk or GPT disk, it can support all of them.

As the advantages or disadvantages, we always convert MBR to GPT disk, and vice versa according to our demand.

How to restore MBR system image to GPT/UEFI

For Windows 7, or the later operating system, the files are bigger than before. However, the MBR disk can only support up to 2TB partition size. So, what can we deal with the large volume files or image?

Considering the large partition size and the flexible partition management, restoring MBR system image to GPT/UEFI can’t be a good idea anymore.

As this operation is beyond Windows disk management, we can use the third party software like AOMEI Backupper to finish it. You can download it using the following download button. This software can make system restore easily and quickly and ensure the system is bootable after restoration.

Download Freeware Win 11/10/8.1/8/7/XP
Secure Download

Restore MBR system image to another GPT disk on the same PC

Before you do:

● Ensure that you have already backed up MBR system image (I usually use the third party software AOMEI Backupper to back up my files, for it is very convenient and it can keep data safe.)

● Make sure that your OS can work in UEFI motherboard and you have prepared a GPT disk to boot in UEFI.

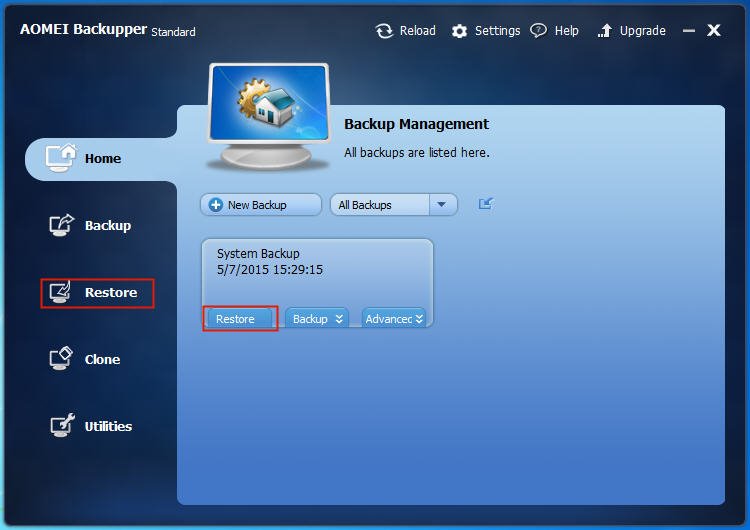

Step 1. Launch AOMEI Backupper Standard. Click the “Restore” under the system image in “Home” page. Or click “Select Image File” under the “Restore” tab to locate the MBR image manually.

Home Restore

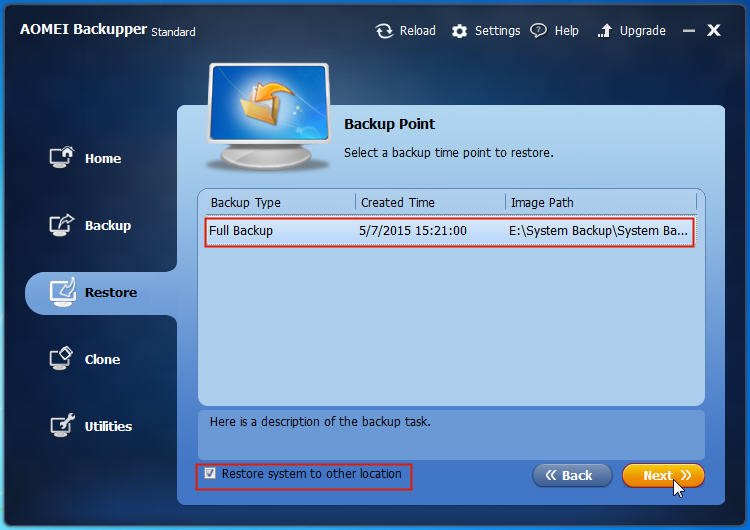

Step 2. Check "Restore this system backup" and "Restore system to other location" in turn, then click "Next".

Restore System to Other Location

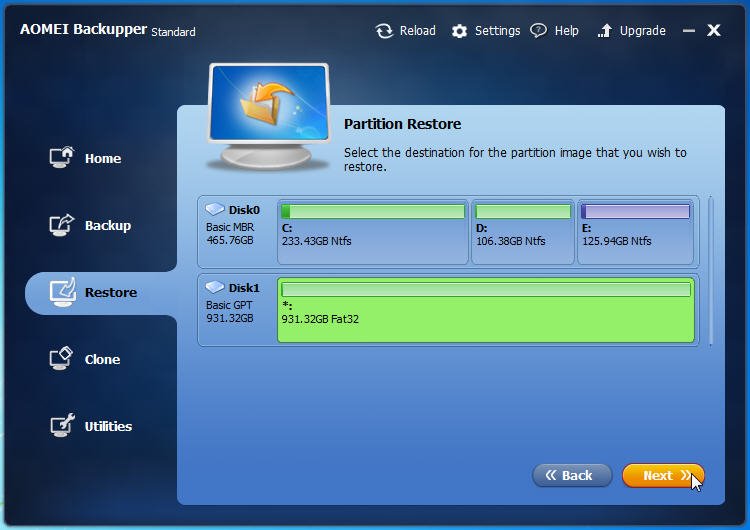

Step 3. Then, select the destination to restore the MBR system to the GPT disk.

Select Destination

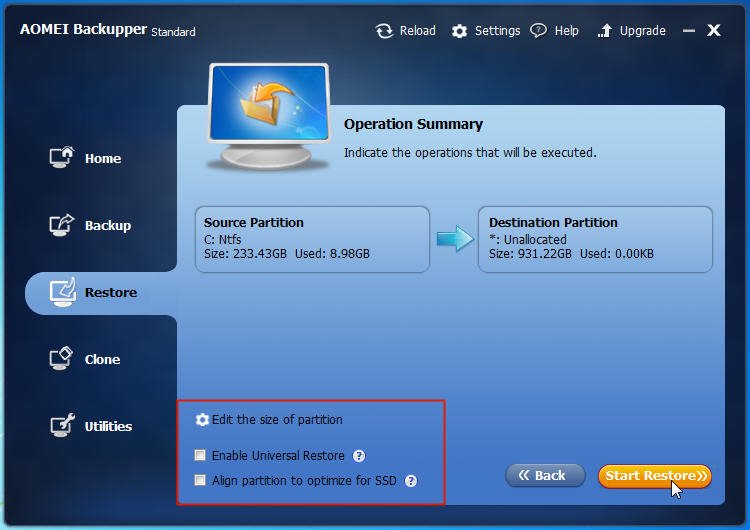

Step 4. There is another pop box to remind you that whether you are sure to do, click “Yes” and it will show the following picture. Confirm the information and click “Start Restore”.

Preview Restore

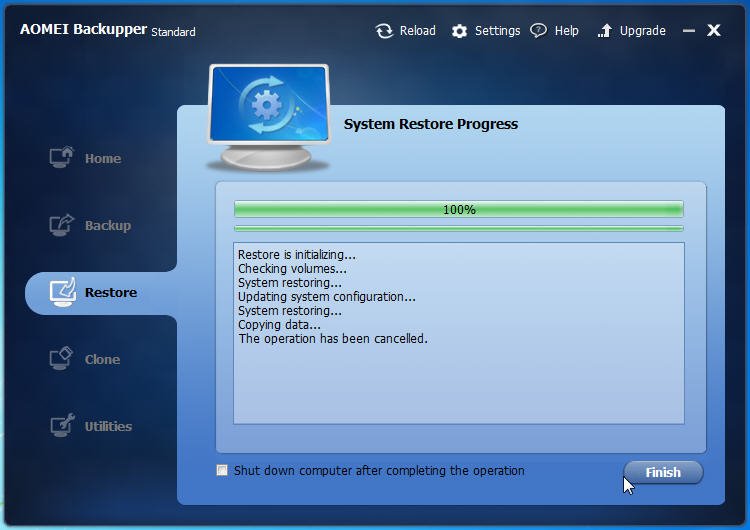

Step 5. Finally, after the progress reaches 100%, please click "Finish" to exit the operation. Then you have already restored the MBR to GPT disk.

If you bought a new PC, you would like to use the old system, or you changed the motherboard so that the MBR can’t handle it, or some other reasons, you can restore the MBR system image to GPT/UEFI on another computer, which we called Universal Restore. It ensures secure boot after restoring OS to a computer with different hardware. You can learn more by clicking the link mentioned above.

Hope this article can help you to restore MBR system image to GPT/UEFI successfully.
