Configure vSphere Replication to Protect VM – Best Practices

What is VMware Replication and how it works

VMware vSphere Replication is designed to replicate virtual machines within the same site or a remote site to achieve fast disaster recovery. It is first introduced in VMware vSphere 5.1 Essentials Plus Kit as a built-in feature. It allows you to configure Recovery Point Object (RPO) between 5 minutes and 24 hours for replication intervals.

VMware Replication extends the recovery capabilities and offers an efficient VM protection solution in vCenter Server which replicates the running virtual machine to another location for data protection. At the same time, for consistent recovery in Microsoft, Hyper-V replica ensures the VM safety using Volume Shadow Copy Service.

So, how to perform VMware replication efficiently? In this article, I will introduce the vSphere Replication best practices for setting, configuration and recovery.

How should you set up vSphere Replication

For VMware Replication, it can be used in testing, impending failure or unexpected disaster recovery and allows you to restore virtual machines within several clicks in the vSphere Web Client.

For vSphere Replication best practices, you have to focus on the followings when you start setting up vSphere Replication.

1. Set up Multiple Point in Time (MPIT) Recovery

Keeping multiple replication makes it easier to restore a virtual machine to a specific point in time. If you accidentally lose data in the recent replication, you don't have to worry about overall data loss, making it safer to protect the virtual machine.

However, for the number of recovery points, more is not better. vSphere Replication can support up to 24 recovery points, and each time point consumes the storage, so creating many recovery points may take so much time to consolidate snapshots after recovery and degrade the performance of the virtual machine.

2. Prepare sufficient disk space on the target site

VM replication requires enough space for replication storage on the target datastore. Insufficient disk space may result in replication failure. So, set aside enough space to store replication. You can create an alarm that alerts you about insufficient storage capacity at the target site.

3. Use Changed Block Tracking

Changed Block Tracking is a technology first introduced in vSphere 4.X. It tracks the exact changes since the last backup and replicates the changed data to the replication virtual machine in time.

Best practices for vSphere Replication to protect VM

Replication is a necessary solution for VM protection. This part will introduce the how to utilize vSphere Replication and the detailed steps to replicate a VM to another host successfully.

Step 1. Deploy vSphere Replication

Before you start use it, it is important to deploy vSphere Replication Appliance correctly at the source and the target sites and use “Deploy OVF Template”.

Step 2. Configure Replication for a VM

Configuring vSphere Replication correctly is crucial to replicate a virtual machine to another location, which determines whether you can successfully implement the VMware vSphere Replication best practices.

Navigate to vCenter, right-click a virtual machine you want to replicate and select All vSphere Replication Actions >> Configure Replication.

Target site: Select target site for VM replication.

Target location: Specify a datastore to store the replicated files.

Replication settings: Set up the Recovery Point Object from 5 minutes to 24 hours, and select Enable point in time instances.

Tips: The 5-minute RPO requires the source host to be ESXi 6.5 or later, and RPO lower than 15 minutes is not supported when you select the OS quiescing option.

Ready to complete: Review the configured information, click Finish to close the wizard

Step 3. Recover a replicated VM

After configuration, you can easily monitor the status of all incoming and outcoming replications to the target site through the Summary screen.

If some accidental events happened to your original virtual machines, you can recover the replicated VM at the target site to keep business continuity.

Tips: You can only recover one virtual machine at a time, and power off the VM at the target site before recovery.

• Log in vSphere Web Client or vSphere Client, and access to the target site.

• Click Site Recovery >> Open Site Recovery. Then select a site pair and click View Details.

• Click Replication and select a replication from Incoming. Then click Recovery.

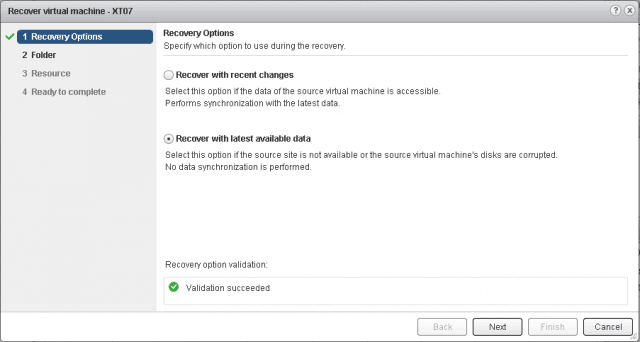

• Recovery Options: Select Recover with recent changes or Recover with latest available data.

Recover with recent changes: It is generally used on the power-of state of VM on the source site when you plan to shut down virtual machines. It will perform a full synchronization of the VM from the source site to the target site to avoid data loss.
Recover with latest available data: It allows you to recover the virtual machine when the source VM is on the power-on state. It uses the latest replication without synchronization which may lose the data that has changed since the most recent replication.

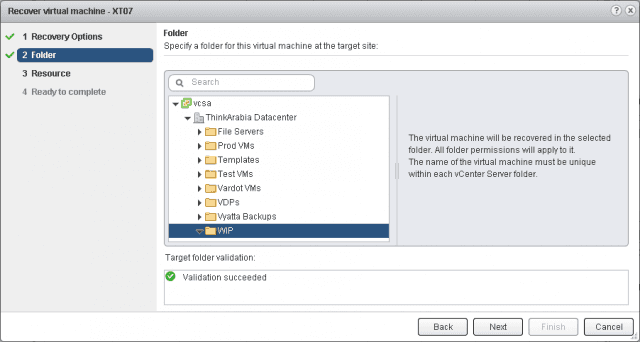

• Folder: Select the recovery folder for the virtual machine at the target site.

• Resource: Specify the cluster, host and resource pool for recovery.

• Ready to complete: Review the settings, and click Finish.

How to use backup and recovery for VM protection

As we know, replication is generally used for fast disaster recovery. If you want to ensure business continuity in the event of an unexpected disaster, you can choose replication. However, backup is more commonly used for long-term data security. Backup provides a stable and secure method for VM protection, which is different from replication that only offers 24 recovery points for a short-term protection. So, performing backup and recovery is a good solution for VM replication. Using a professional VMware replication software safeguards your business for a long term.

For VMware backup software, I will use a professional VMware backup software - AOMEI Cyber Backup as an instance to show you how to achieve instant VM protection.

This software can help you to do the followings easily.

✦ Automatic VMware Backup: Auto backup virtual machines on regular basis to protect VMware workloads continuously.
✦ Multiple VM Backup: batch backup large numbers of VMs managed by vCenter Server, or multiple VMs on a standalone ESXi host.
✦ Easy-to-use: backup and restore multiple virtual machines via central console without complicated configuration and reinstallation..
✦ Role-Assignment: allow one administrator to create sub-accounts with limited privilege, effectively reduce administration cost and manual errors
✦ Restore from Any Point Easily: Restore VM from any backup point directly and quickly, eliminating the need to restore a full backup plus each subsequent backup point.

AOMEI Cyber Backup supports both paid and free versions of VMware ESXi 6.0 and later versions. Next, I will show you how to batch backup VMs managed by vCenter Server with AOMEI Cyber Backup. You can click the following button to download the software.

*You can choose to install this VM backup software on either Windows or Linux system.

4 Steps to perform vSphere VM backup and recovery

1. Bind Devices: Access to AOMEI Cyber Backup web client, navigate to Source Device >> VMware >> + Add VMware vCenter or Standalone ESXi host. And then click … >> Bind Device.

2. Create Backup Task: Navigate to Backup Task >> + Create New Task, and then select VMware ESXi Backup as the Device Type.

3. Set Task Name, Device, Target, Schedule, and Cleanup as need.

• Task Name: you can change the task name or use the default name with an ordinal.
• Device: batch select large numbers of VMs managed by vCenter Server for centralized backup.
• Target: select to back up to a local path, or to a network path.
• Schedule (optional): perform full, differential or incremental backup, and automate execution according to the frequency you specified.
• Cleanup (optional): automatically delete the old backup copies that exceed the retention period you specified.

• Run Backup: Click Start Backup and select Add the schedule and start backup now, or Add the schedule only.

Created backup tasks will be listed and monitored separately, for restoring, progress checking and schedule changing.

4. Backup the main screen, click Restore to perform fast recovery when the original VM corrupted. When restoring, you can also restore to new location to create a new VM in the same or another datastore/host directly from the backup, saves the trouble of re-configuring the new VM.

Within several clicks, you can simply obtain a secure backup of multiple virtual machines, and restore VM timely. It helps you recover VM in the event of a disaster and protects VM data security.

Frequently asked questions about VMware Replication

Q: Does vSphere replication use snapshots?

A: vSphere Replication retains a number of snapshot instances of the virtual machine on the target site based on the retention policy that you specify. vSphere Replication supports a maximum of 24 snapshot instances. After you recover a virtual machine, you can revert it to a specific snapshot.

Q: What is the difference between vSphere replication and SRM?

A: vSphere Replication license is included in vSphere Enterprise Plus, while SRM is an independent product and is a per VM or per CPU (as part of vCloud Suite Enterprise) license.

Summary

This article introduces the VMware vSphere Replication best practices. VMware vSphere Replication makes a full synchronization of the source virtual machine and provides fast recovery at the target site to prevent virtual machines from disaster.

In addition to allowing fast recovery, a professional backup software is also efficient to offer data security insurance for a long-term with an economical cost.
