[Step by Step] How to Update vCenter 6.7 to 7.0

With VCSA you can upgrade vCenter in simplified steps. This article will show you the detailed steps of how to upgrade vCenter 6.7 to 7.0.

Crystal

By Crystal / Updated on March 8, 2023

Share this: instagram reddit

vCenter upgrade with the vSphere suite

As you may know, VMware ESXi and vCenter Server are 2 key components of VMware vSphere suite. While ESXi is the type-1 hypervisor on which you can create and run virtual machines and virtual appliances, vCenter Server is a service that acts as a central administrator for ESXi hosts connected in a network.

VMware ESXi and vCenter Server are upgraded with vSphere. As vSphere has upgraded to 7 (and 8 in August 2022), vCenter has upgraded to 7 as well. In order to experience timely feature updates and technical support, you may want your vCenter upgrade with the vSphere suite. This article will show you the detailed steps of how to update vCenter 6.7 to 7.0 via vCenter Server Appliance (VCSA).

vCenter Server Appliance

How to upgrade vCenter 6.7 to 7.0 via VCSA

vCenter Server Appliance (VCSA) is a preconfigured virtual machine that is optimized for running vCenter Server and the associated services. It includes Photon OS, the vSphere authentication services, PostgreSQL, VMware vCenter Lifecycle Manager and Extension.

The presence of VCSA greatly simplifies the process to install vCenter, upgrade vCenter, migrate and restore vCenter. In this part, I will show you the detailed steps of vCenter upgrade via VCSA.

Steps to upgrade vCenter 6.7 to 7.0

1. Download VMware vCenter Server Appliance 7.0 ISO image from the official site, and then mount the ISO image as a virtual DVD drive.

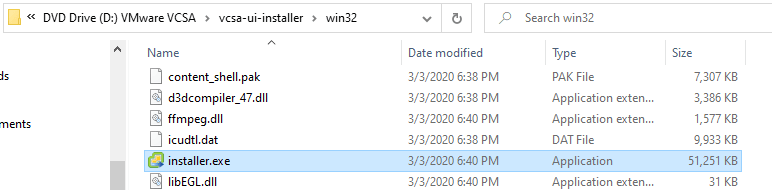

2. Navigate to vcsa-ui-installer\win32 directory and find installer.exe, right-click on installer.exe and select Run as administrator.

Note: If you are using Linux, navigate to vcsa-ui-installer\lin64 and run installer.exe.

vCenter Server Appliance Installer

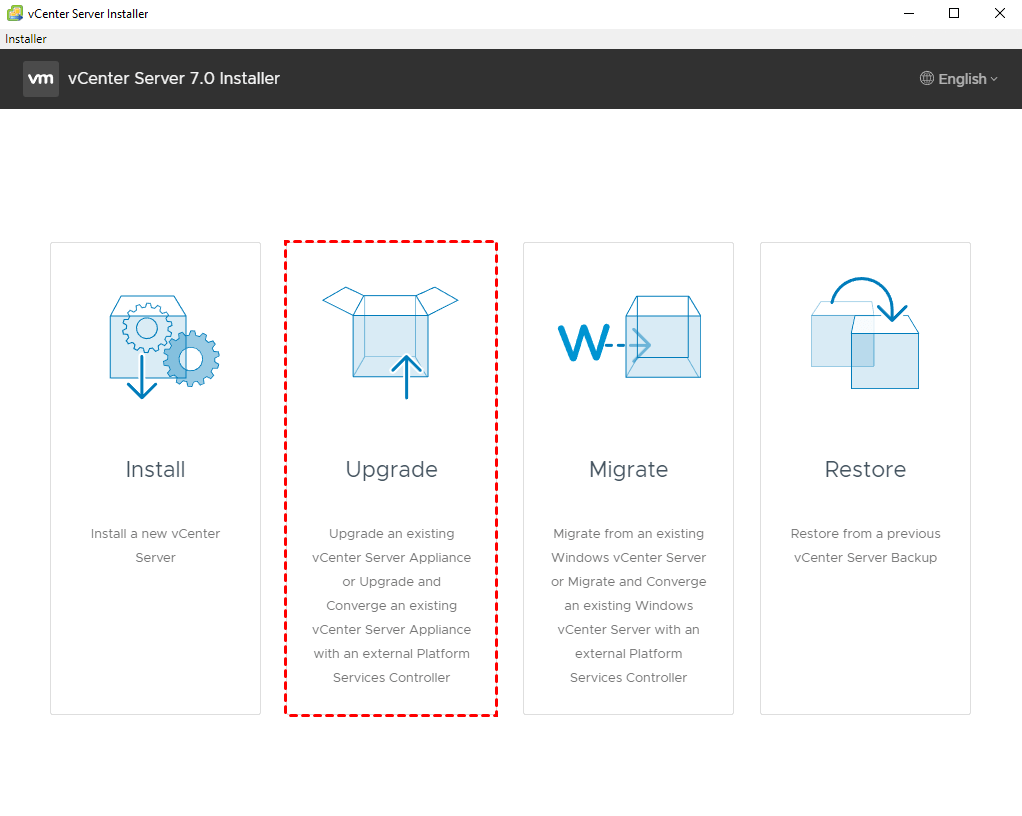

3. On the interface of vCenter Server Installer application, click Upgrade.

Upgrade vCenter

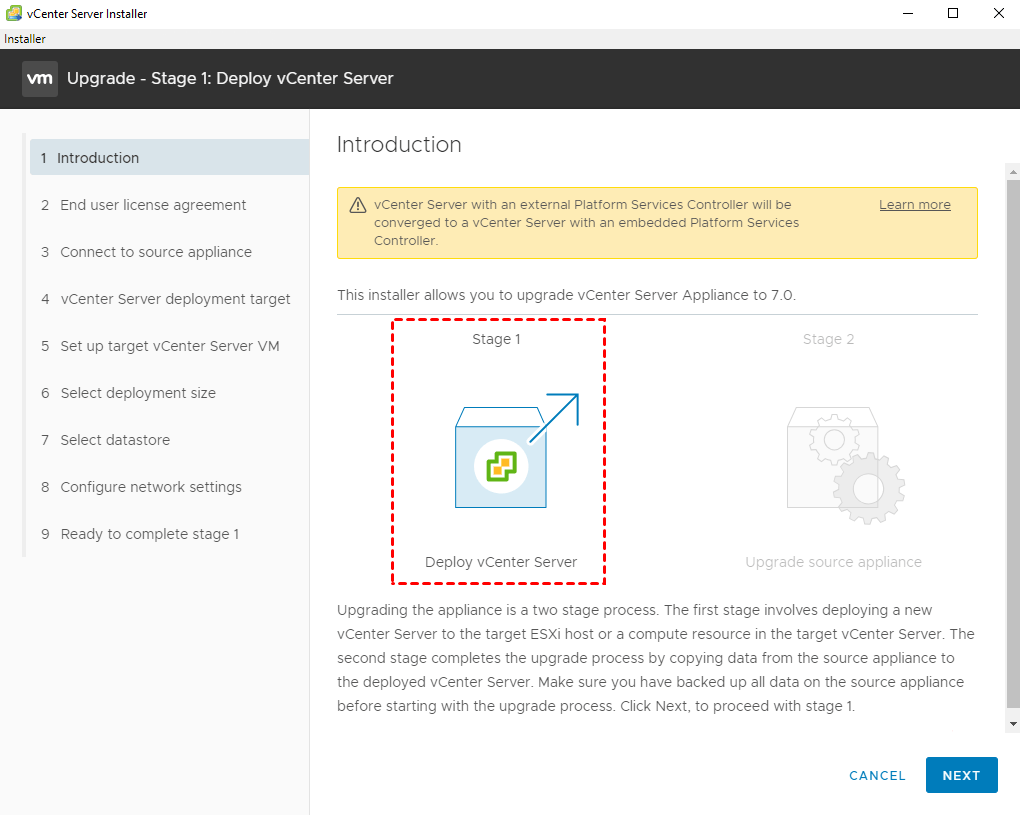

4. Follow the wizard of Stage 1 Deploy vCenter Server.

Stage 1 Deploy vCenter Server

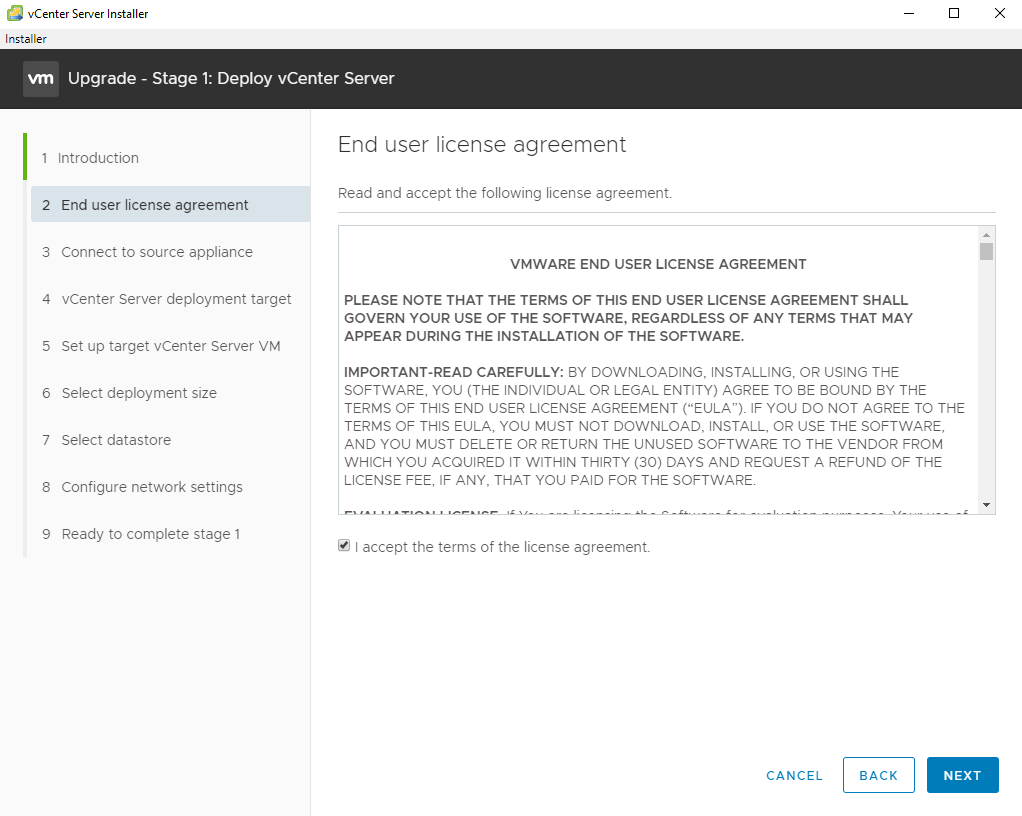

5. Select I accept the terms of the license agreement option, and click Next to continue.

I accept the terms of the license agreement

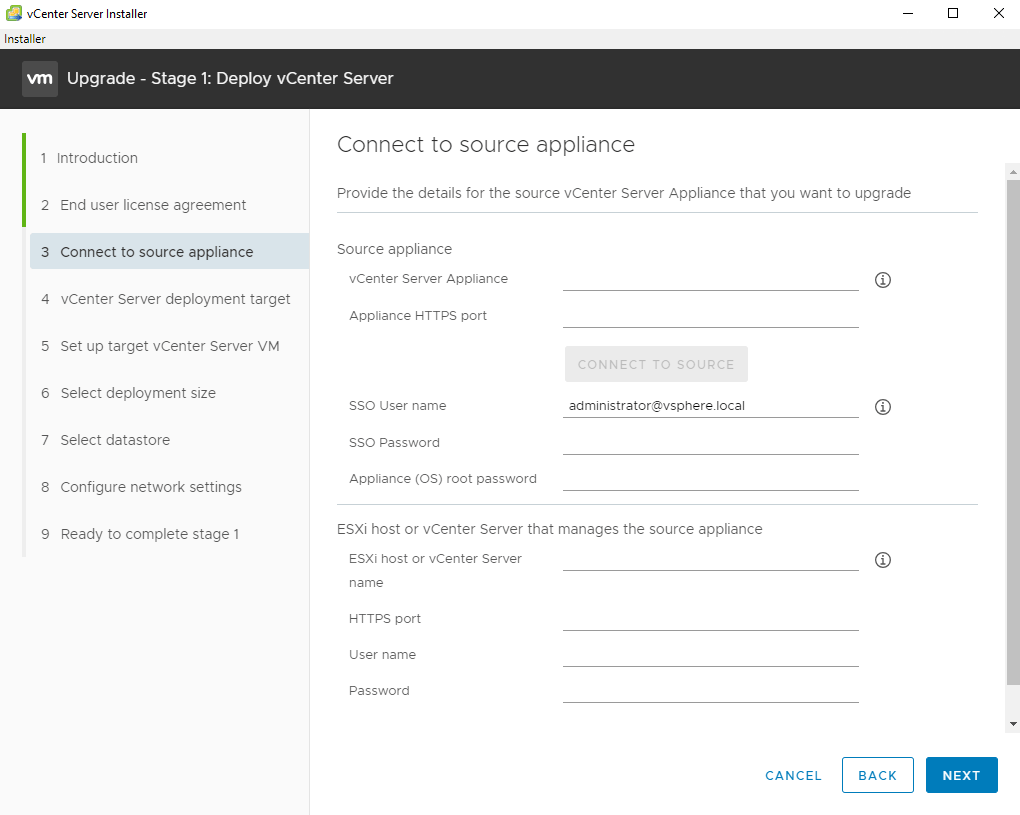

6. Provide the details for the source vCenter Server Appliance that you want to upgrade. Enter the existing VCSA FQDN or IP address and all of the login credentials for the existing VCSA and ESXi host.

Connect to source appliance

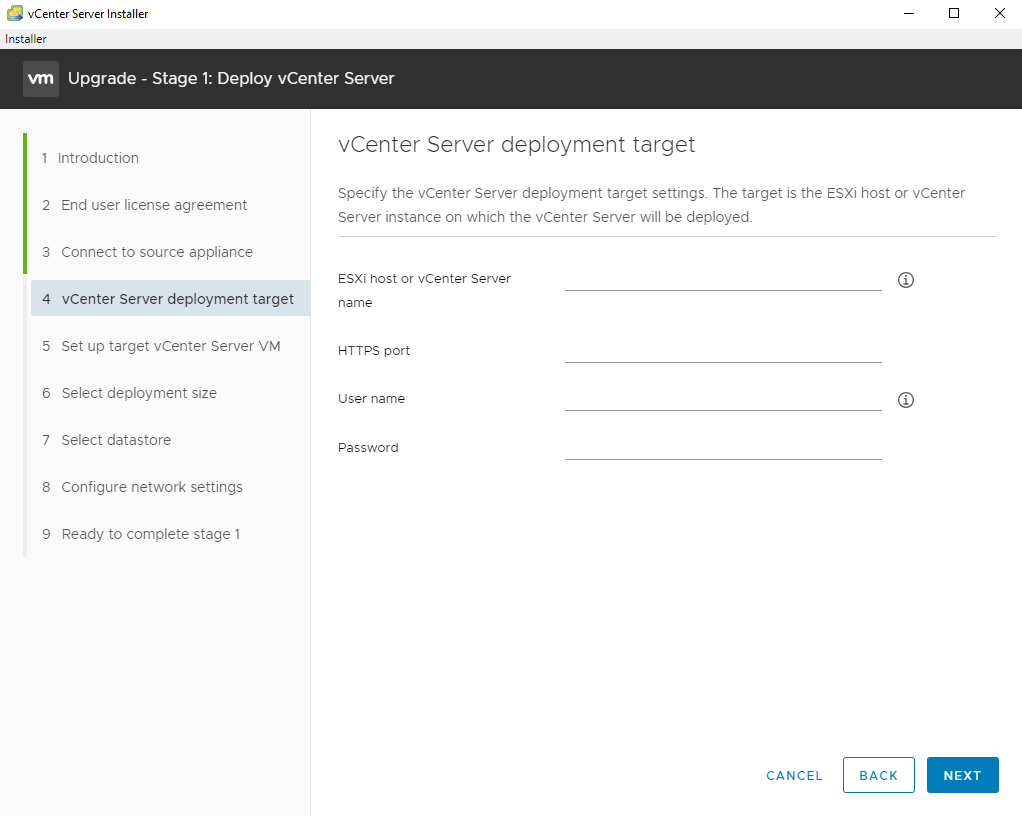

7. Specify the vCenter Server deployment target settings. The target is the ESXi host or vCenter Server instance on which the new vCenter Server Appliance 7.0 will be deployed.

vCenter Server deployment target

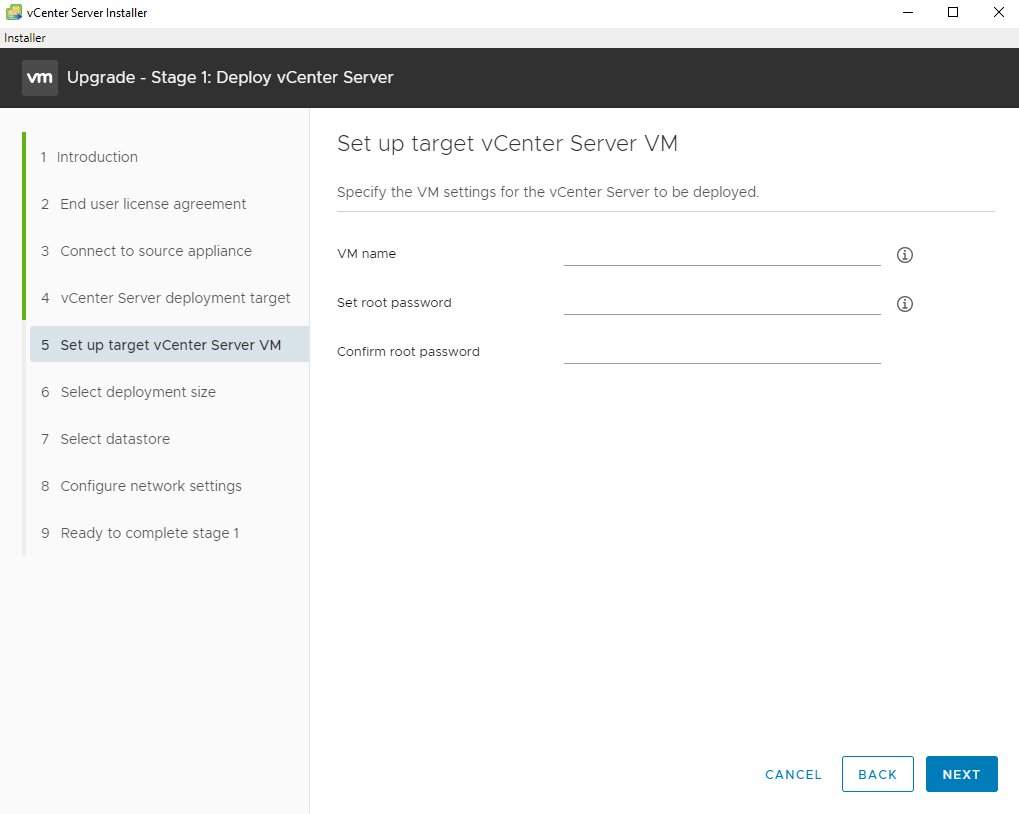

8. Specify the VM name and root password for the new vCenter Server 7.0 to be deployed.

Set up target vCenter Server VM

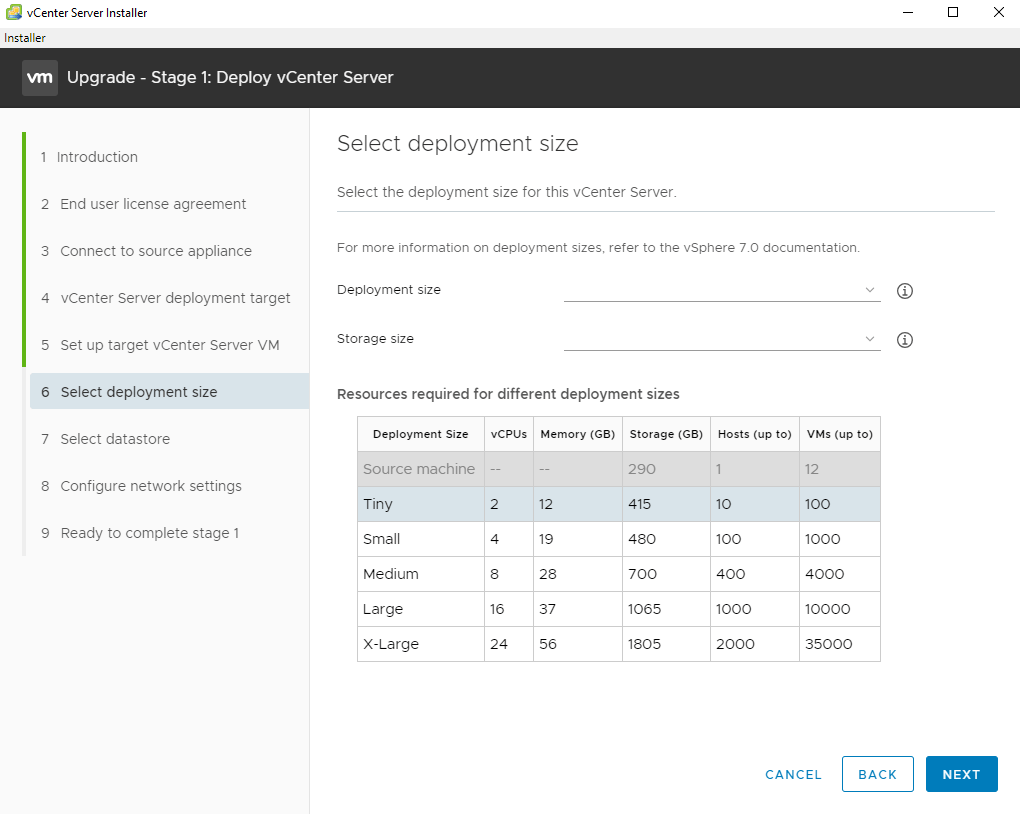

9. Select the deployment size for this vCenter Server. You can refer to the official chart of resources required for different deployment sizes.

Select deployment size

10. Select the storage datastore for this vCenter Server. You can choose to show only compatible datastores.

Select datastore

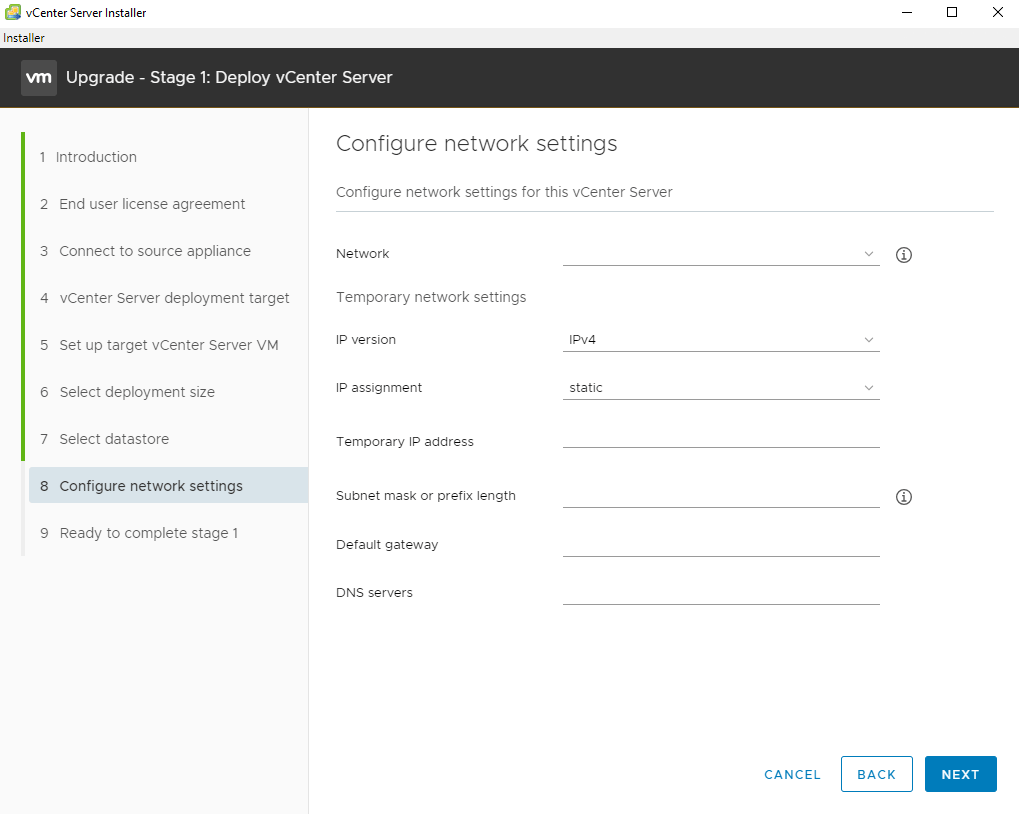

11. Configure network settings for this vCenter Server.

Configure network settings

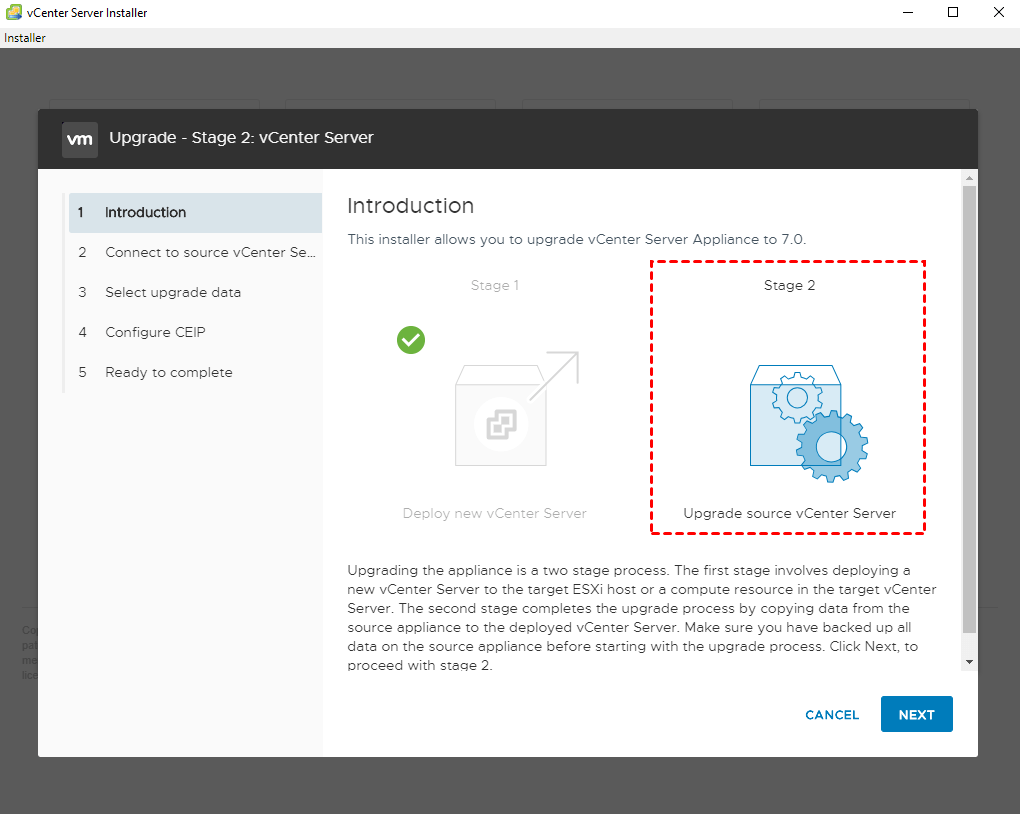

12. Review the settings and click Finish to initialize stage 1 deployment. When it completes, click Next to continue Stage 2 Upgrade source vCenter Server.

Stage 2 Upgrade source vCenter Server

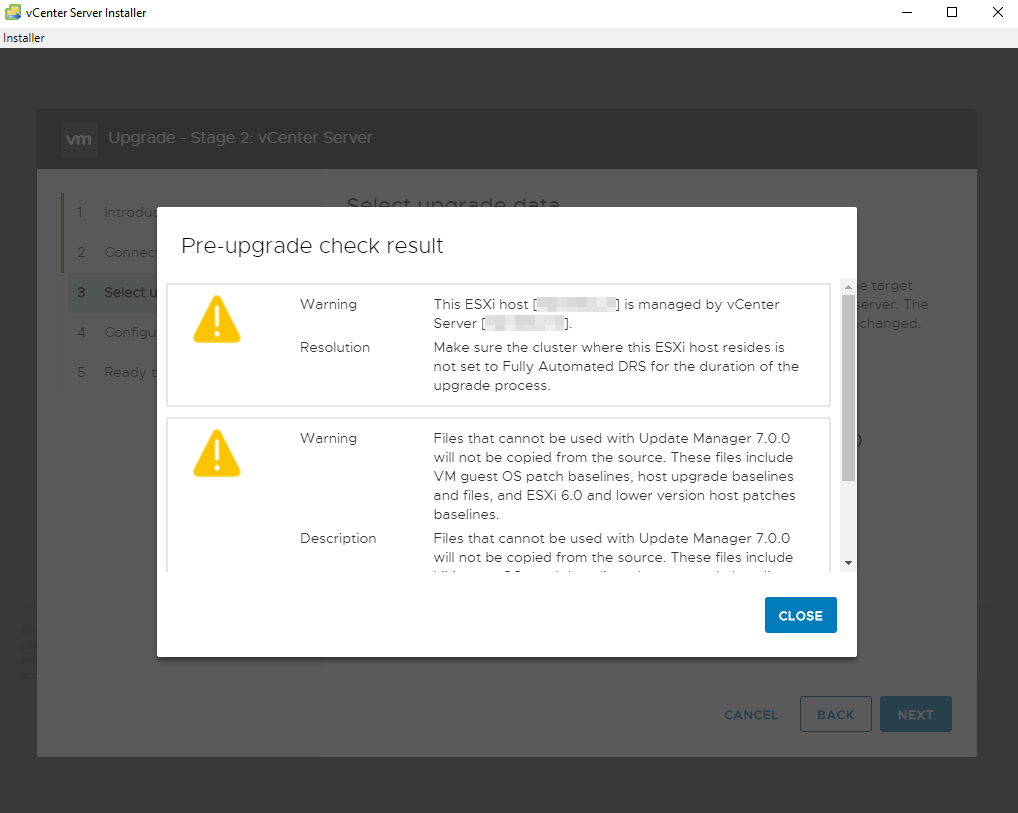

13. The installer will automatically run a Pre-Upgrade check on your existing VCSA. Check the results and then click on Next to continue.

Note: Be sure that DRS is disabled if you have more than one host.

Pre-upgrade check

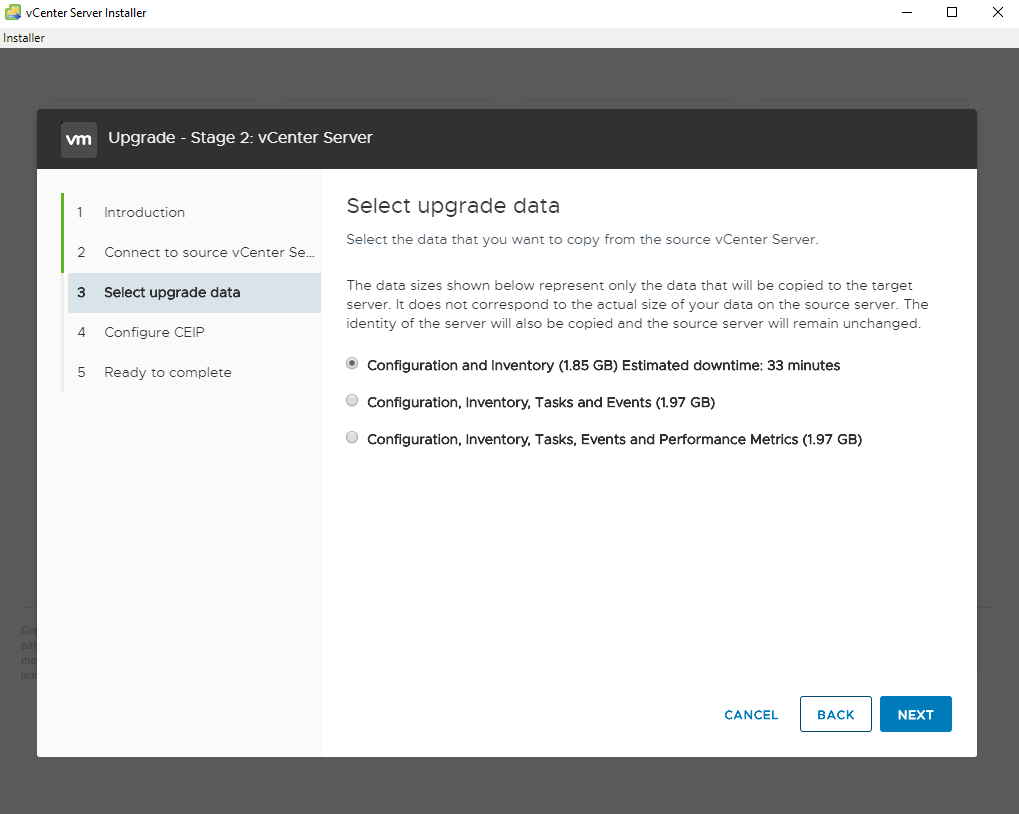

14. Select the data that you want to copy from the source vCenter Server.

Select upgrade data

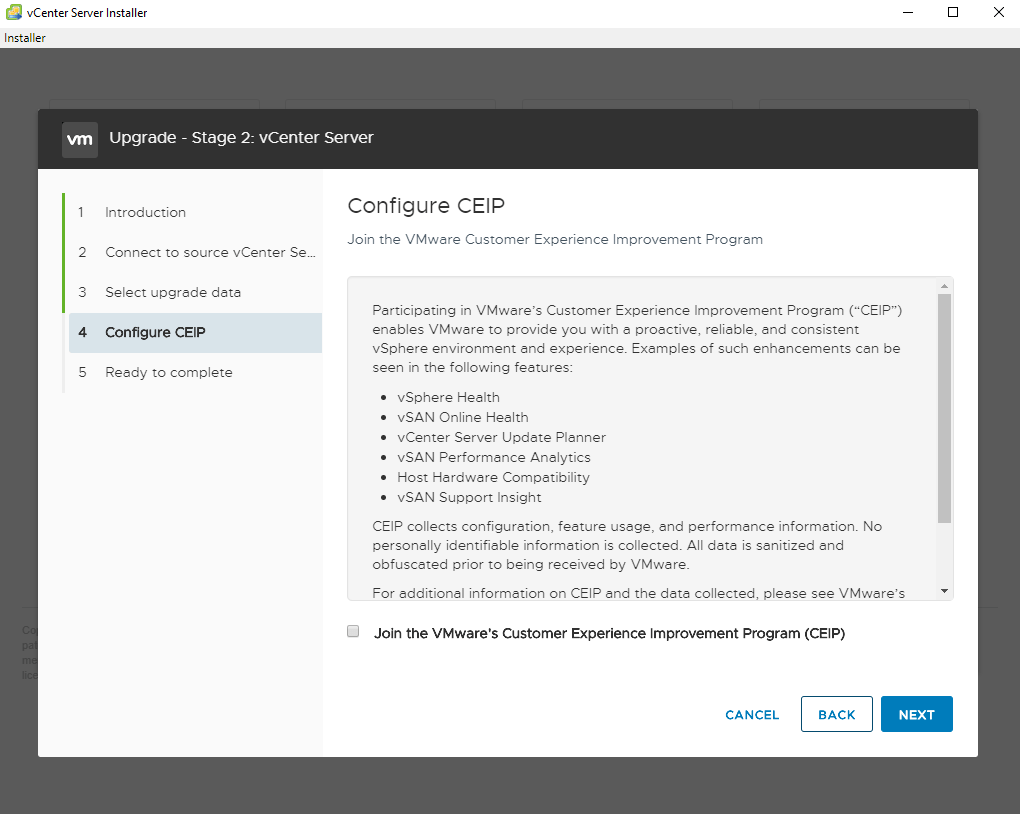

15. Check the Join the VMware’s Customer Experience Improvement Program (CEIP) option and click Next to review the settings. Then you can click Finish to initialize the Upgrade.

Configure CEIP

Backup VMware ESXi VMs to protect the VM data

vCenter Server is a very convenient official platform for centrally managing ESXi virtual environments and large numbers of VMs on it. However, it does not provide the feature of virtual machine backup. And that makes backup software a commonly accepted choice.

Here I introduce you to a VMware backup software AOMEI Cyber Backup, it enables you to backup multiple VMs in 3 simple steps. And it offers you the following benefits.

Agentless Backup: create complete and independent image-level backup for VMware ESXi and Hyper-V VMs.
Flexible vSphere Backup: batch backup large numbers of VMs managed by vCenter Server, or multiple VMs on a standalone ESXi host.
Multiple Storage Destinations: backup to local drive, or network destinations like Windows share or NAS.
Automated Execution: create backup schedules to automate backups daily, weekly, monthly.

Next, I will show you how to backup multiple VMware ESXi VMs via AOMEI Cyber Backup. You can click the following button to download the 30-day free trial.

Download Free TrialVMware ESXi & Hyper-V
Secure Download

3 steps to perform VMware ESXi VM backup

1. Bind Devices: Access to AOMEI Cyber Backup web client, navigate to Source Device > VMware > + Add VMware Device to Add vCenter or Standalone ESXi host. And then click > Bind Device.

Add VMware ESXi host

2. Create Backup Task: Navigate to Backup Task > + Create New Task, and then set Task Name, Backup Type, Device, Target, Schedule, and Cleanup.

  • Device: batch select large numbers of VMs managed by vCenter Server for centralized backup.

Select virtual machines vCenter

  • Target: select to back up to a local path, or to a network path.
  • Schedule (optional): perform full, differential, or incremental backup, and automate execution according to the frequency you specified.

Backup schedule type

  • Cleanup (optional): automatically delete the old backup copies that exceed the retention period you specified.

backup cleanup

3. Run Backup: Click Start Backup and select Add the schedule and start backup now, or Add the schedule only.

Start Backup

Created backup tasks will be listed and monitored separately, for restoring, progress checking and schedule changing.

When restoring, you can also restore to new location to create a new VM in the same or another datastore/host directly from the backup, saving the trouble of re-configuring the new VM.

Restore to new location

Summary

To experience timely feature updates and technical support, you may want your vCenter upgrade to the newest version. Luckily, the installation and configuration of vCenter Server has been greatly simplified with vCenter Server Appliance (VCSA).

In this article, I showed you the detailed steps of how to upgrade vCenter 6.7 to 7.0 via VCSA. If you need to manage a large virtual environment, you can also to configure multiple vCenter Servers to work simultaneously.
