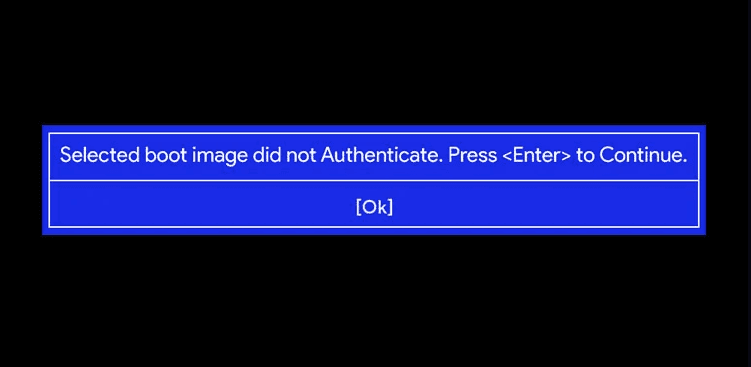

4 Fixes: Selected Boot Image Did Not Authenticate on HP USB

Scenario

If you click OK when you also encounter this error, the PC will restart and you will again be back on this error message. Therefore, without wasting any time let’s check how to actually fix the HP selected boot image did not authentic from USB error with the help of below-listed troubleshooting guide.

How to fix selected boot image did not authenticate (4 ways)

From this chapter, you can learn the most likely working methods to fix the selected boot image did not authenticate on HP Windows 10 USB.

• Fix 1. Switch to legacy boot and disable secure boot in BIOS
• Fix 2. Run startup repair
• Fix 3. Do a hard reset of your PC
• Fix 4. Clear the secure boot keys

Fix 1. Switch to legacy boot and disable secure boot in BIOS

As mentioned above, this issue results due to Secure Boot restricting access to the boot image, you need to go to your BIOS to disable it and enable legacy boot. Here are the detailed steps for the method.

1. Restart your device and get into BIOS settings by pressing the BIOS key, when the computer starts repeatedly press F10 or DEL to enter BIOS setup.

2. Go to System Configuration > Boot Options and press Enter.

3. With the down arrow key, select Legacy Support and hit the Enter button. If it is disabled, select Enabled and hit Enter.

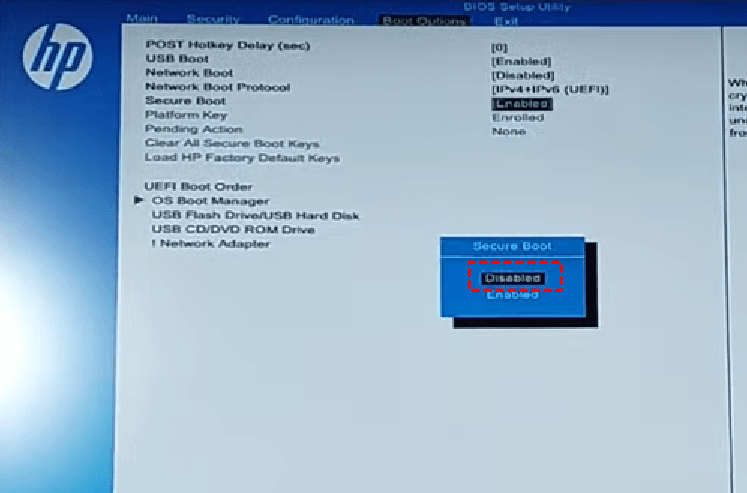

4. Select Secure Boot and hit Enter. Now set Secure Boot as Disabled.

5. Press the F10 and confirm the changes. Use the left arrow key to choose Yes and press Enter.

6. After this, the computer will automatically restart to Windows with Legacy support enabled and Secured Boot disabled.

Optionally, some HP computers can go to Advanced > Configure Legacy Support and Secure Boot to set Legacy Support Enable and Secure Boot Disable.

Fix 2. Run startup repair

It is also possible that the issue occurred due to errors on your bootloader. You can run startup repair to resolve such an issue. Here’s how to do it.

1. Hold power button to turn the computer off when Windows logo appears, and then turn it on. Repeat this for 3 times and the computer may boot into WinRE as well.

2. On WinRE, go to Troubleshoot > Advanced options > Startup Repair, wait for the repair to complete.

Fix 3. Do a hard reset of your PC

Doing a hard reset of your HP computer will reset all the configurations in your BIOS and allow the new configurations operating system changes and hardware changes on the next boot. Follow the steps to hard reset it.

1. Turn the computer off.

2. Remove the AC adapter cable and the battery.

3. Hold down the power button for at least 15 sec while both power sources are removed.

4. This should reset the hardware in the computer. Restart your HP computer and check if the problem has been get rid of.

Fix 4. Clear the secure boot keys

To learn how do I fix selected boot image did not authenticate error, you can also clear the HP secure boot keys.

1. Press F10 at the Windows startup screen to enter BIOS setup.

2. Select the Clear All Secure Boot Keys option in the Boot options tab.

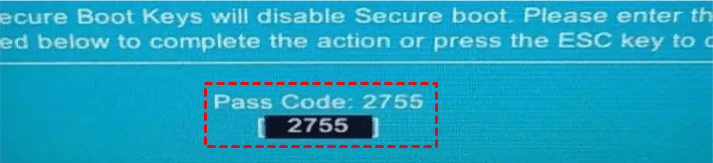

3. Now enter the pass code shown in the input field and hit the Enter button.

4. Save the changes and exit the BIOS option. Now you may be able to freely boot your Windows 10 from any bootable USB.

Create bootable Windows 10 USB with best media creator

If none of the previous methods is in use, the Windows 10 image you want to boot to itself may have issues. To deal with HP selected boot image did not authenticate on USB, you can format the device and install the bootable Windows 10 on the device again. To enable that, AOMEI Backupper Standard comes to help. It is the best bootable media creation tool with easy to use interface and it’s totally free of charge!

✎ It enables you to create bootable DVD/CD or USB that can be used to start a crashed computer of various brands. And the created media is able to boot in both BIOS and UEFI mode.
✎ It offers all-around backup solutions to help you backup different kinds of data. You can choose System Backup, Disk Backup, Partition Backup and file backup according to your situation.
✎ All Windows PC operating systems like Windows 11/10/8.1/8/7/Vista/XP are supported (both 32 bit and 64 bit).

Follow the instructions below to create a bootable Windows 10 USB via AOMEI Backupper:

Step 1. Connect a USB drive to your HP computer. Download, install and launch AOMEI Backupper Standard.

Step 2. Click Tools at the left panel and select Create Bootable Media on the right.

Step 3. In the pop-up window, choose Windows PE and click Next. It is recommended to choose Windows PE so that you can access the full functions of AOMEI Backupper.

Step 4. Select USB Boot Device and click Next. You will receive a prompt to format your USB drive. Click Yes to start creating bootable media.

✌ If you upgrade to higher editions, you can create Windows recovery environment that can be accessed from Windows boot menu, so no bootable device is needed to boot a failed system. It works just like bootable media, but only available on the current computer.

In the end

Now you know how to fix selected boot image did not authenticate from HP Windows 10 USB with the provided 4 easy ways in the above contents. If you have tried the fixes and still none of them work for you, then you are suggested to recreate a bootable Windows 10 USB with the best media creator – AOMEI Backupper to see if the boot image can be selected.

Moreover, with its outstanding backup and restore features, you can backup Windows 11 to USB easily and when you encounter some unforeseen problems, you can restore your PC to an earlier date with this image.
