By Cherry / Last Updated September 12, 2017

Why need restore a drive image in Windows 10?

A drive image is very useful to computer users because they can restore all data with it when you need. And there does have many situations that you need restore a drive image in Windows 10. The most benefit is that you do not need worry about the damage of data loss if you had created a drive image before.

A drive image is an exactly copy of your entire hard drive including operating system, boot files, applications, programs, and many other data. All data on the hard drive will be compressed into one image file. If you really meet the bad situations, you won’t lose your data and you can restore computer to the earlier date.

How to restore a drive image in Windows 10?

If you do really meet the bad day and you have to restore a drive image in Windows 10 to back to the original data, you can make it if you had created drive image in Windows 10 before. Windows users may know that Windows operating system has its own tool for backup and restore. But it is a little bit flexible for users who are unfamiliar with Windows OS. Considering that, here we will introduce you a simple way to restore a drive image in Windows, that is using the third party software AOMEI Backupper, which can create system image for Windows 10 and restore from it.

To restore disk image in Windows 10 with AOMEI Backupper, you need prepare for it:

Download AOMEI Backupper Standard for free use.

● You need create an image of hard drive in Windows 10 with AOMEI Backupper.

Create Windows 10 recovery drive in case of your computer won’t boot.

Then, you can follow the steps below to restore drive image in Windows 10.

Step1.If you can still boot into Windows, boot it and open the freeware AOMEI Backupper. If your Windows 10 won’t boot, boot it from the recovery drive you created with AOMEI Backupper before, and you will get into the boot interface, select the recovery drive to boot from it.

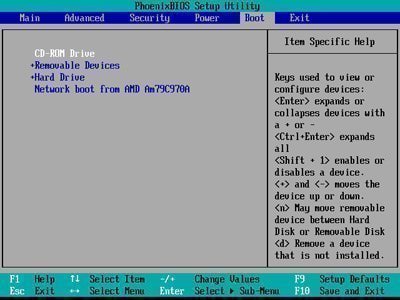

Boot Order

Step2. Then, you will get into AOMEI Backupper main interface directly. Click Restore, and click Path to select the image file and restore data from it.

Click Path

Step3.Select a backup time point to restore.

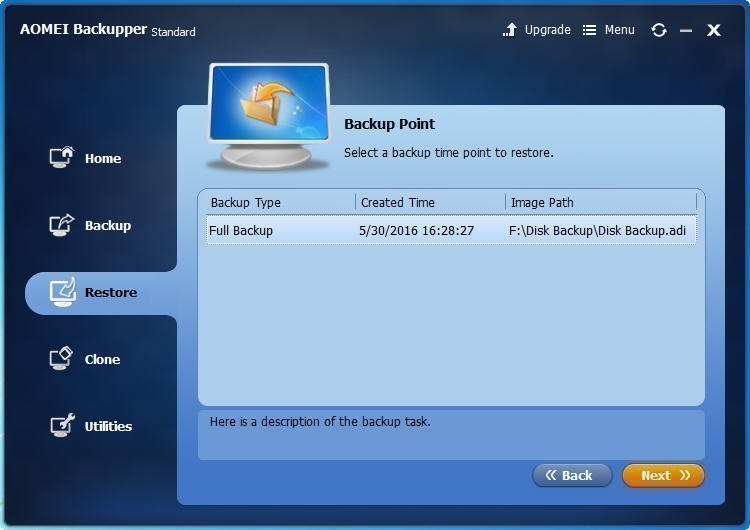

Backup Point Time

Step4. Select the drive image file to restore, or you can click Part to select a partition in the image file to restore it to original or other.

Select Disk

Step5. Select the destination for the disk image that you want to restore, and click Next, it will pop out a window to remind you that the existing partitions on destination drive will be overwritten or deleted, and suggest you to backup disk before executing. Click Yes to move on.

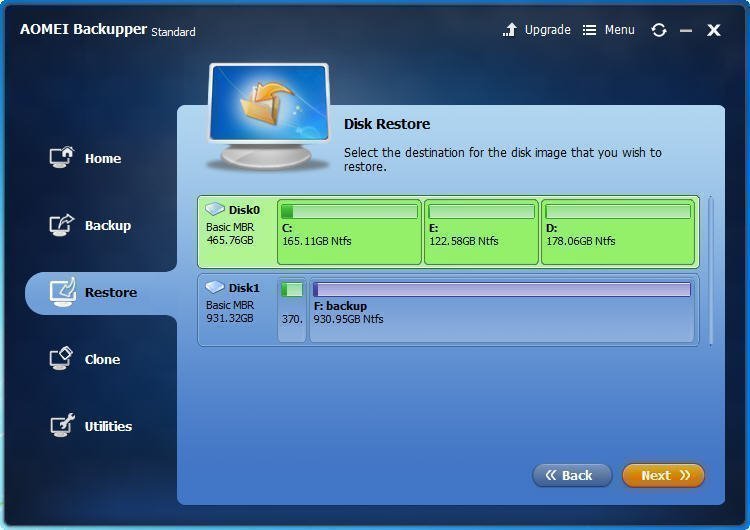

Disk Restore

Step6.Here you can confirm the operation summary, if there is no problem, click Start Restore to do restore the drive disk image in Windows 10. When the progress reaches 100%, click Finish to exit.

Operation Summary


● You can click “Edit partition on the destination disk” to re-partition your hard drive.

● If you are going to do a bare metal recovery, which means you are restoring an image created on different hardware to current computer, you need tick the option in front of “Enable Universal Restore” so that your computer will be able to start up after the disk restore.

● The “Align partition to optimize for SSD” is designed for solid state drive (SSD). If your destination disk is SSD, tick the option, and it will accelerate the reading and writing speed for the SSD.
