Windows 10 Backup Error 0x807800C5 – How to Solve It Easily

Are you confronted with backup error 0x807800C5 in Windows 10? Don’t worry! Follow this article to solve the issue easily. You can also find another easy-to-use backup tool.

Lily

by Lily Updated on November 27, 2023

Share this: instagram reddit

An error occurs: backup error 0x807800C5

Backup is the most fundamental disaster recovery technology. To make backups on your PC, you may use the built-in tools in Windows 10: Windows File History or Windows Backup. The first tool backs up important folders in your user folder while the second tool is used to backup the entire system as well as everything else on your hard drive.

However, when creating Windows System Image Backup, some users receive the following error message:

“The backup failed.

There was a failure in preparing the backup image of one of the volumes in the backup set. (0x807800C5)”

Backup Error 0x807800C5

Usually additional information is offered in the error message, such as “the specific backup disk cannot be found (0x80780081)”, “the process cannot access the file because it is being used by another process (0x80070020)”. How it comes and how to resolve Windows 10 system image backup fails accordingly? Please read on.

How to solve Windows backup 0x807800C5 easily

The key for the backup error 0x807800C5 is that Windows only allows one image backup. If you perform Windows System Image Backup for the second time, there will be a conflict of the identical folders named WindowsImageBackup or a clash of the drive to be backed up. To solve 0x807800C5 in Windows 10, there are two solutions for your reference:

👉 Solution 1: Rename the WindowsImageBackup folder or remove backup files
👉 Solution 2: Disable system protection and delete restore points
👉 Backup Windows 10 via a powerful freeware🔥

Solution 1: Rename the WindowsImageBackup folder or remove backup files

1. Open This PC and navigate to the exact location of Windows Image Backup.

2. Right click on the WindowsImageBackup folder and rename it WindowsImageBackup.old.

Rename WindowsImageBackup

3. Create a Windows backup again to see if it works now. If not, you may delete the files listed below and try again:

  • the MediaID.bin file

  • the file with your computer name

  • the WindowsImageBackup folder

Delete Backup Files

Solution 2: Disable system protection and delete restore points

1. Press Windows Key + S to open the search box. Type “system” and select System from the list.

2. In the pop-up window, click System protection.

3. In the System Properties window, select the drive that has system protection turned on and click Configure.

Configure

4. In the next window, select Disable system protection and click OK.

Disable System Protection

5. You will receive a warning prompting you that existing restore points will be deleted and new restore points will not be created, click Yes to confirm the operation.

Warning

6. Repeat Step 3 – Step 5 if there is more than one drive that has system protection turned on.

7. Restart your computer and you shall be able to perform Windows System Image Backup now. Turn on system protection again for specific drives if you need.

Note: Sometimes Windows 10 backup error 0x807800C5 could also be caused by corrupt or missing system files. In this case, you can run sfc/ scannow in Windows 10 to fix the error.

Backup Windows 10 via a powerful freeware

Besides Windows 10 creating system image fails, you may encounter Windows backup freezes at 97%, Windows 10 backup 0 bytes, etc. If you are tired of figuring out corresponding solutions to each error, you may turn to the best free backup software—AOMEI Backupper Standard.

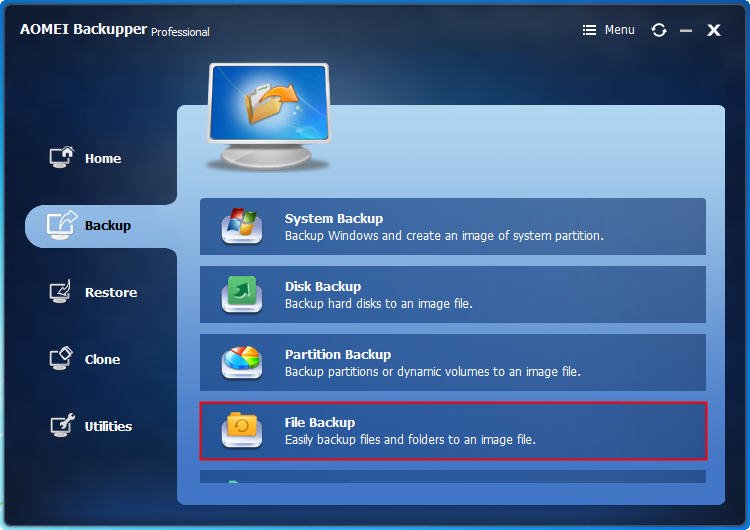

◈ There are five types of backup available in AOMEI Backupper: System/Disk/Partition/File/Cloud Backup, which can meet your different needs.
◈ It is able to set schedule automatic backup in Windows 10 with daily, weekly, monthly frequency, therefore you don't need to worry about data loss due to forgetting backups.
◈ It enables you to do block level incremental backup to improve backup efficiency and greatly reduce disk space.
◈ All Windows PC operating systems like Windows 11/10/8.1/8/7/Vista/XP are supported.

Learn how to backup Windows 10 via AOMEI Backupper in detail. At first, download AOMEI Backupper Standard and install it on your computer. For server users, try AOMEI Backupper Server.

Download Freeware Win 11/10/8.1/8/7/XP
Secure Download

Step 1. Run AOMEI Backupper. Click on “Backup” and select “System Backup”.

System Backup

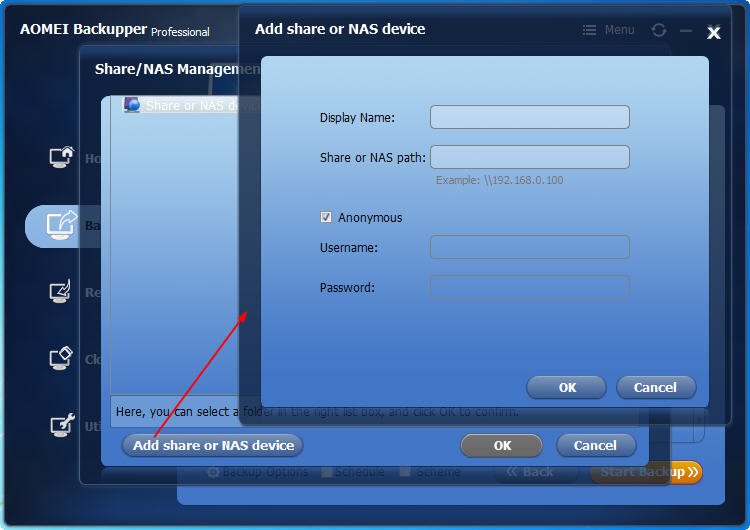

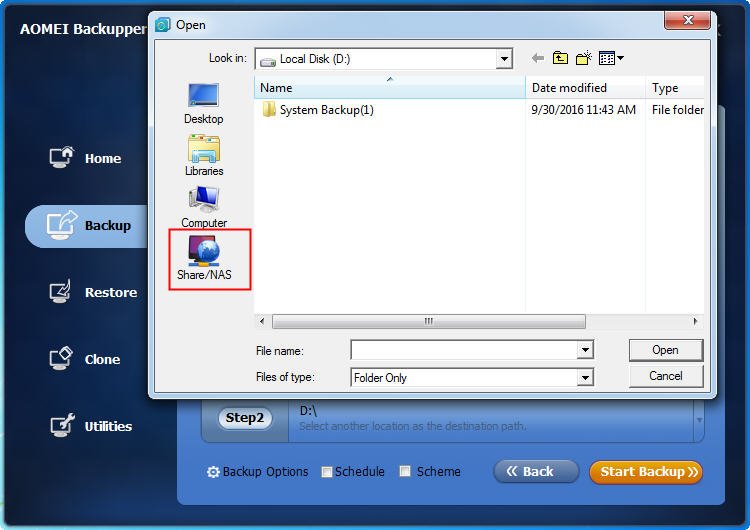

Step 2. The required system partition(s) is (are) selected by default. Choose the destination path to store the backup files. You can backup Windows 10 to external hard drive, USB drive or network location.

Select Destination Path

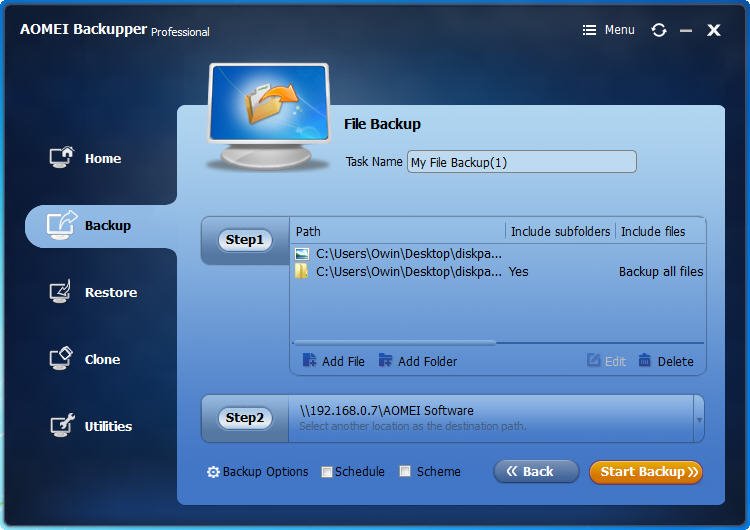

Step 3. Confirm the operation and click “Start Backup”.

Start Backup

Tips:

There are advanced backup settings you can choose as per your need:

>> Options: you can enable Windows 10 email notification, choose the compression level for the backup image file and select intelligent sector backup or sector-by-sector backup.

General Backup Settings

>> Schedule Backup: you can set the backup task to run automatically at fixed intervals, such as daily, weekly, and monthly.

Schedule Settings General

>> Backup Scheme: you can choose full, incremental or differential backup as the backup method. Both incremental and differential backup can help you backup only changed files. However, differential backup is a paid feature.

You can also have the program delete old image files automatically to save disk space for you. There are 4 cleanup methods, namely By quantity, By time, By daily/weekly/monthly and By space. All of them are available on the Professional edition, thus you need to upgrade before using this feature.

Backup Scheme Menu

Prepare for possible boot errors

Some system errors may cause your computer fails to boot. To ensure you can perform system restore from boot, you can do either of the following things in advance.

👉 Create bootable media: you can use a bootable USB, CD or DVD to boot your computer in case of boot failure.

Create Bootable Media

👉 Create a recovery environment: after creating a recovery environment with AOMEI Backupper, you will see an option like Enter into AOMEI Backupper when you boot your computer. Select it and you can use all backup and recovery solutions offered by AOMEI Backupper. This is an advanced feature.

Recovery Environment

Conclusion

There are two effective solutions offered in this article to fix Windows 10 backup error 0x807800C5. It limits the number of backups to one, so you can only rename the WindowsImageBackup or disable system protection before creating another one.

But if you think it's complicated and want a more flexible way to create multiple backups and always get the latest backups. Only in this case, you can restore computer to an earlier date without losing any data. Also, it provides you multiple features to minimize the backup image size, and among them, automatic backup cleanup method is the most effective one.

And you can enjoy its image deploy tool in the technician or techplus edition if you want to restore system to multiple computers simultaneously. Apart from the backup & restore functions, AOMEI Backupper enables you to transfer data from one hard drive to another with the sync and clone features. Why not give it a try right now?
